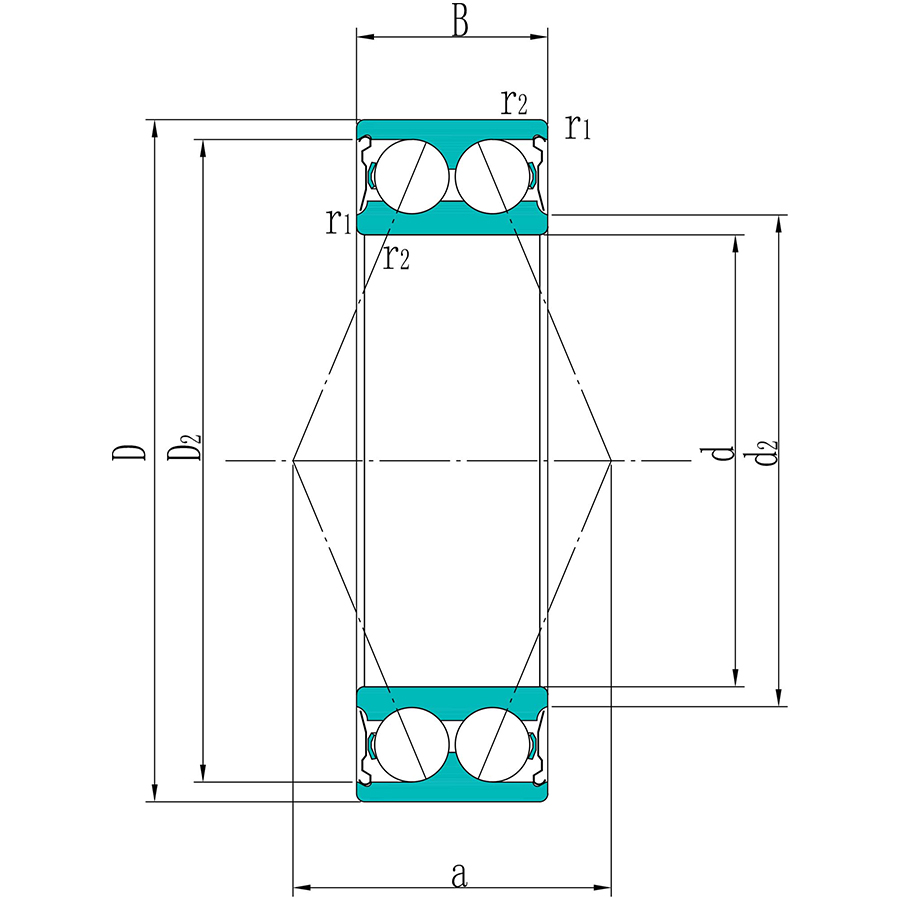

3202 A-2Z
Outer diameter (D): 35 mm
Inner diameter (d): 15 mm
Width (B): 15.9 mm
Basic dynamic load rating : 11.2 KN
Basic static load rating: 6.8 KN
Product Description
Outer diameter (D):
35 mm
Inner diameter (d):
15 mm
Width (B):
15.9 mm
Basic dynamic load rating :
11.2 KN
Basic static load rating:
6.8 KN
Limiting speed :
14000 r/min
Reference speed :
18000 r/min
Fatigue load limit (Pu):
0.285 KN
Shoulder diameter (d2):
20.2 mm
Recess diameter (D2):
0.6 mm
Chamfer dimension (r1,2):
21 mm
Distance side face to pressure point (a):
19.4 mm
Diameter of shaft abutment (da MIN):
20 mm
Housing abutment diameter (Da):
30.6 mm
Chamfer dimension (ra):
0.6 mm
Type:
Closed
Mass:
0.066 kg
