3208 A-2Z
Outer diameter (D): 80 mm
Inner diameter (d): 40 mm
Width (B): 30.2 mm
Basic dynamic load rating : 48 KN
Basic static load rating: 36.5 KN
Product Description

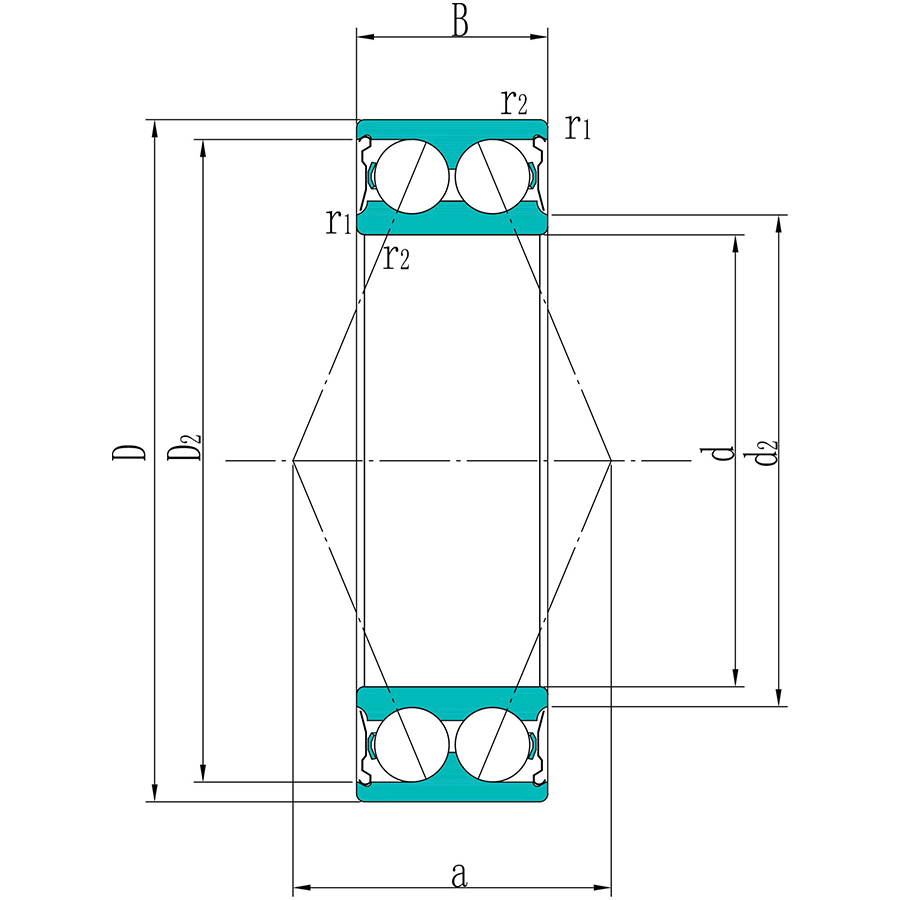

Outer diameter (D):
80 mm
Inner diameter (d):
40 mm
Width (B):
30.2 mm
Basic dynamic load rating :
48 KN
Basic static load rating:
36.5 KN
Limiting speed :
6500 r/min
Reference speed :
8000 r/min
Fatigue load limit (Pu):
1.56 KN
Shoulder diameter (d2):
47.8 mm
Recess diameter (D2):
1.1 mm
Chamfer dimension (r1,2):
46 mm
Distance side face to pressure point (a):
47 mm
Diameter of shaft abutment (da MIN):
48 mm
Housing abutment diameter (Da):
73 mm
Chamfer dimension (ra):
1 mm
Type:
Closed
Mass:
0.57 kg
