3306 A-2Z

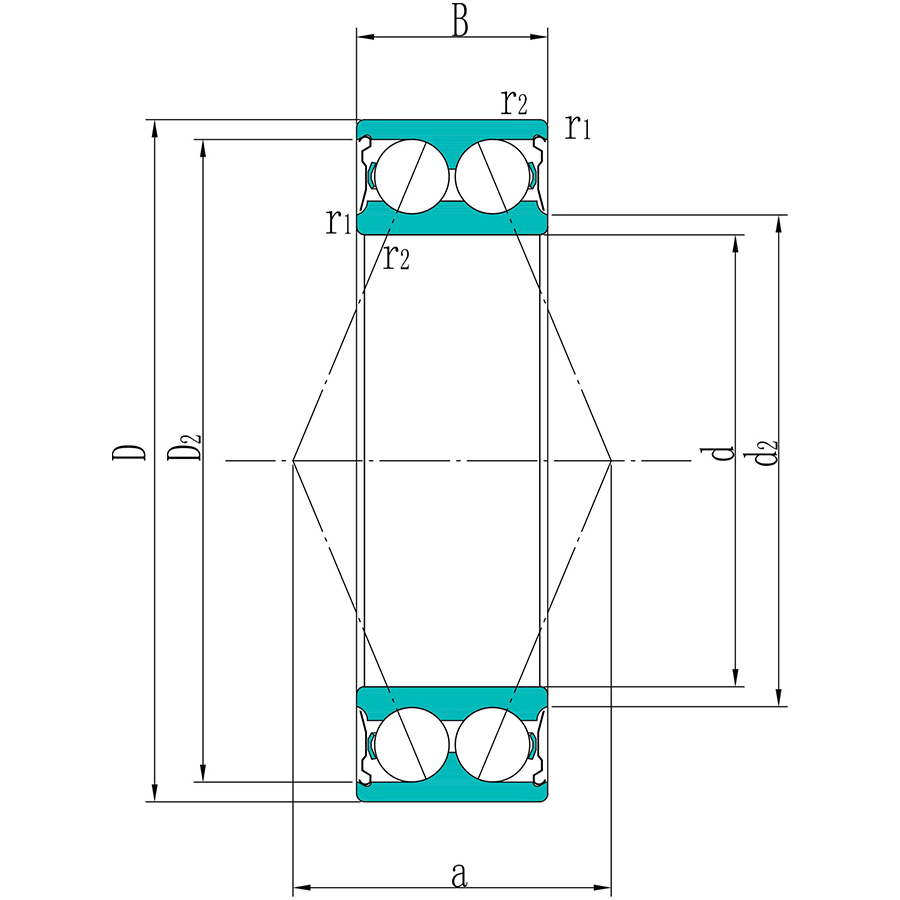

Outer diameter (D): 72 mm
Inner diameter (d): 30 mm
Width (B): 30.2 mm
Basic dynamic load rating : 42.5 KN
Basic static load rating: 30 KN
Product Description
Outer diameter (D):
72 mm
Inner diameter (d):
30 mm
Width (B):
30.2 mm
Basic dynamic load rating :
42.5 KN
Basic static load rating:
30 KN
Limiting speed :
6300 r/min
Reference speed :
9000 r/min
Fatigue load limit (Pu):
1.27 KN
Shoulder diameter (d2):
39.8 mm
Recess diameter (D2):
1.1 mm
Chamfer dimension (r1,2):
42 mm
Distance side face to pressure point (a):
37 mm
Diameter of shaft abutment (da MIN):
39.5 mm
Housing abutment diameter (Da):
65 mm
Chamfer dimension (ra):
1 mm
Type:
Closed
Mass:
0.52 kg
