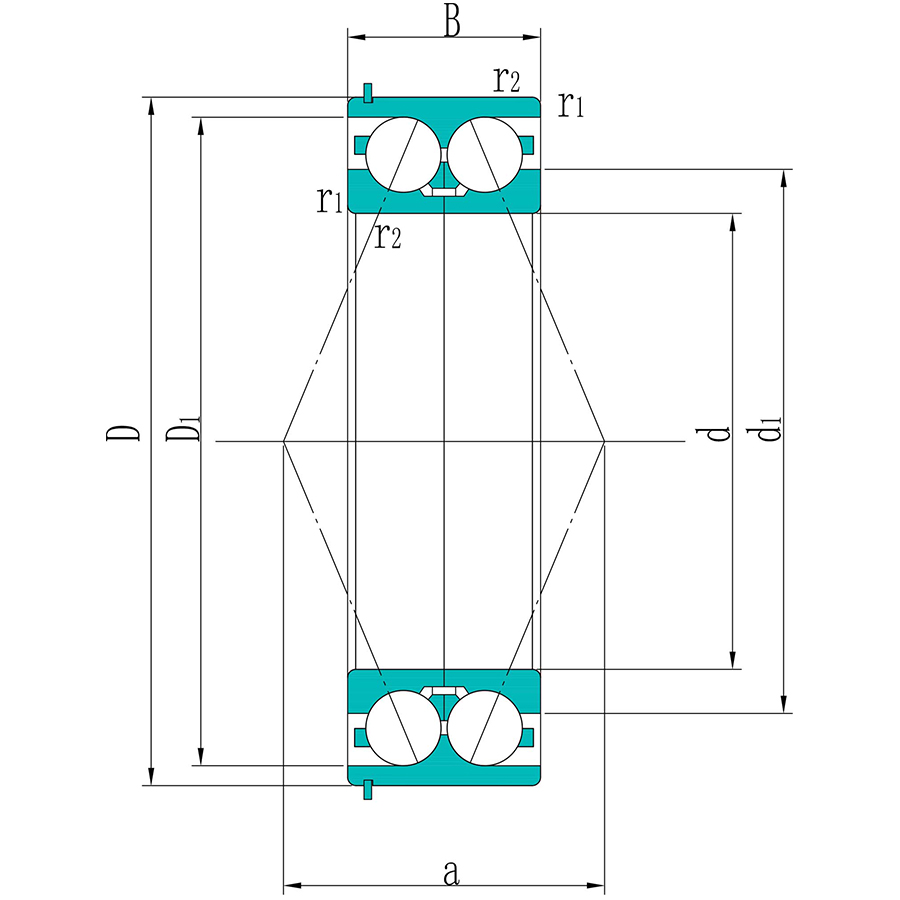

3313 DNRCBM
Outer diameter (D): 140 mm
Inner diameter (d): 65 mm
Width (B): 58.7 mm
Basic dynamic load rating : 138 KN
Basic static load rating: 122 KN
Product Description
Outer diameter (D):
140 mm
Inner diameter (d):
65 mm
Width (B):
58.7 mm
Basic dynamic load rating :
138 KN
Basic static load rating:
122 KN
Limiting speed :
4500 r/min
Reference speed :
5300 r/min
Fatigue load limit (Pu):
5.1 KN
Shoulder diameter (d2):
68.4 mm
Recess diameter (D2):
110 mm
Chamfer dimension (r1,2):
2.1 mm
Distance side face to pressure point (a):
114 mm
Diameter of shaft abutment (da MIN):
77 mm
Housing abutment diameter (Da):
-mm
Chamfer dimension (ra):
2 mm
Type:
Open
Mass:
4 kg
