55 BNC 19 SN24

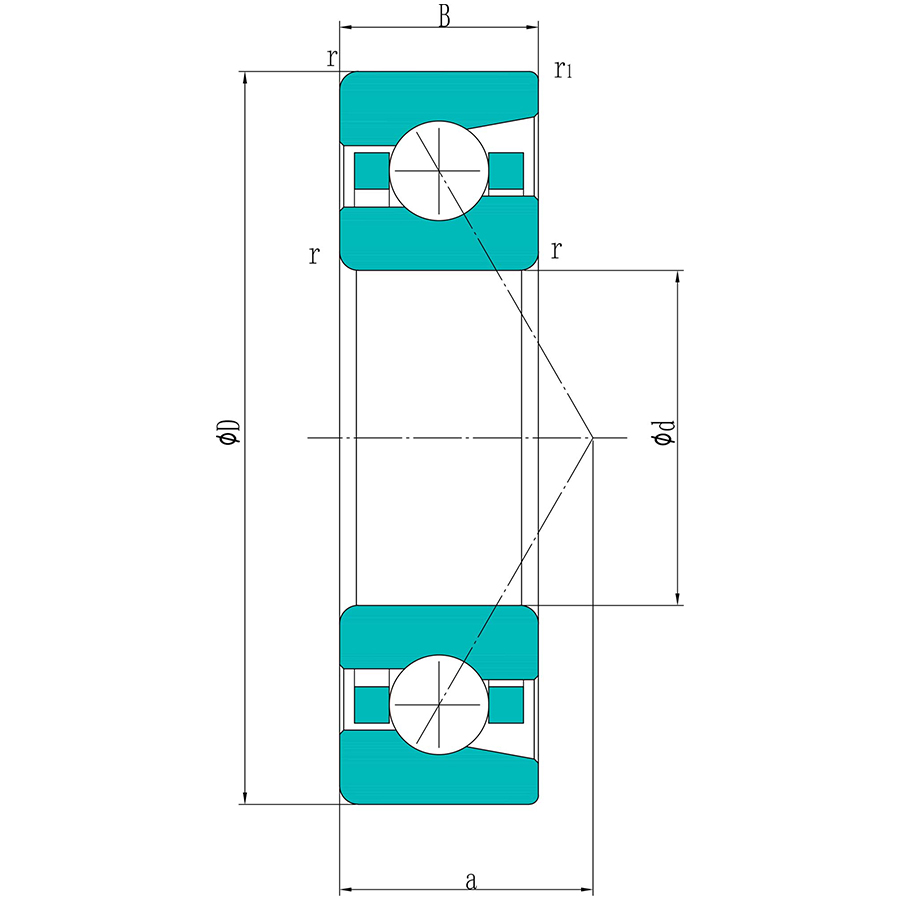

Outer diameter (D): 80 mm
Inner diameter (d): 55 mm
Width (B): 13 mm
Chamfer dimension (r): 1 mm
Chamfer dimension (r1): 0.6 mm
Product Description
Outer diameter (D):
80 mm
Inner diameter (d):
55 mm
Width (B):
13 mm
Chamfer dimension (r):
1 mm
Chamfer dimension (r1):
0.6 mm
Basic dynamic load rating :
13500 N
Basic static load rating:
14100 N
Factor (f0):
16.9 mm
Effective center location (a):
15.5 mm
Diameter of shaft abutment (da MIN):
61 mm
Housing abutment diameter (Da):
74 mm
Diameter of housing abutment (Db MAX):
75 mm
Chamfer dimension (ra):
1 mm
Chamfer dimension (rb):
0.5 mm
Internal space :
5.8 mm
Mass:
0.179 kg
