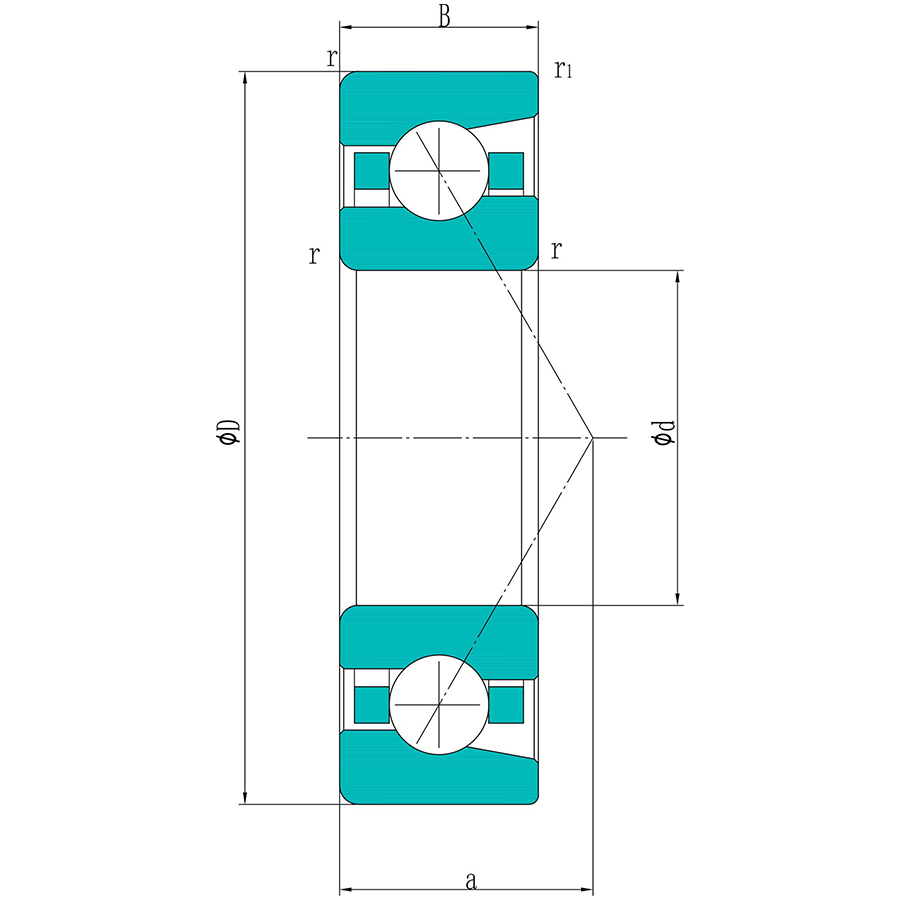

80 BNC 19 SN24
Outer diameter (D): 110 mm
Inner diameter (d): 80 mm
Width (B): 16 mm
Chamfer dimension (r): 1 mm
Chamfer dimension (r1): 0.6 mm
Product Description
Outer diameter (D):
110 mm
Inner diameter (d):
80 mm
Width (B):
16 mm
Chamfer dimension (r):
1 mm
Chamfer dimension (r1):
0.6 mm
Basic dynamic load rating :
18900 N
Basic static load rating:
23600 N
Factor (f0):
17.3 mm
Effective center location (a):
20.7 mm
Diameter of shaft abutment (da MIN):
86 mm
Housing abutment diameter (Da):
104 mm
Diameter of housing abutment (Db MAX):
105 mm
Chamfer dimension (ra):
1 mm
Chamfer dimension (rb):
0.5 mm
Internal space :
12 mm
Mass:
0.385 kg
