85 BNC 19 SN24

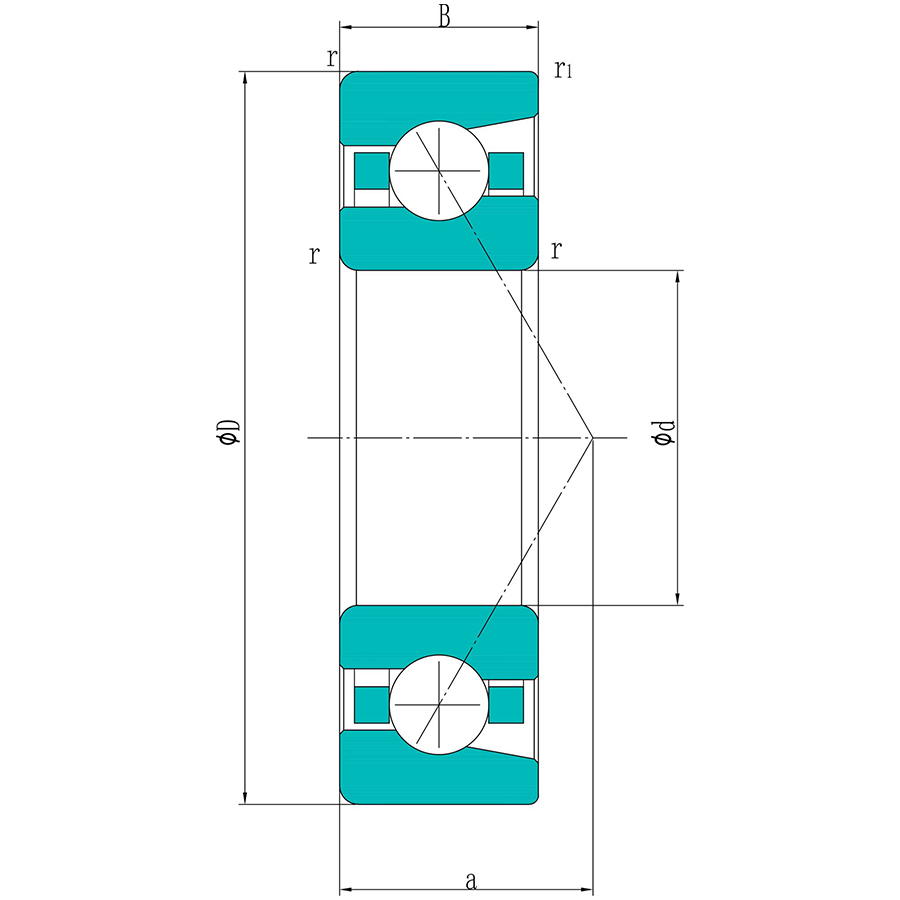

Outer diameter (D): 120 mm
Inner diameter (d): 85 mm
Width (B): 18 mm
Chamfer dimension (r): 1.1 mm
Chamfer dimension (r1): 0.6 mm
Product Description
Outer diameter (D):
120 mm
Inner diameter (d):
85 mm
Width (B):
18 mm
Chamfer dimension (r):
1.1 mm
Chamfer dimension (r1):
0.6 mm
Basic dynamic load rating :
22700 N
Basic static load rating:
28000 N
Factor (f0):
17.2 mm
Effective center location (a):
22.7 mm
Diameter of shaft abutment (da MIN):
92 mm
Housing abutment diameter (Da):
113 mm
Diameter of housing abutment (Db MAX):
115 mm
Chamfer dimension (ra):
1 mm
Chamfer dimension (rb):
0.5 mm
Internal space :
16 mm
Mass:
0.564 kg
