25 TAC 62B DDG

Outer Diameter (D): 62mm

Inner Diameter (d): 25mm

Width (B): 15mm

Chamfer(rmin): 1.0mm

Chamfer(r1min): 0.6mm

Product Specifications

Outer Diameter (D): 62mm
Inner Diameter (d): 25mm
Width (B): 15mm
Chamfer(rmin): 1.0mm
Chamfer(r1min): 0.6mm

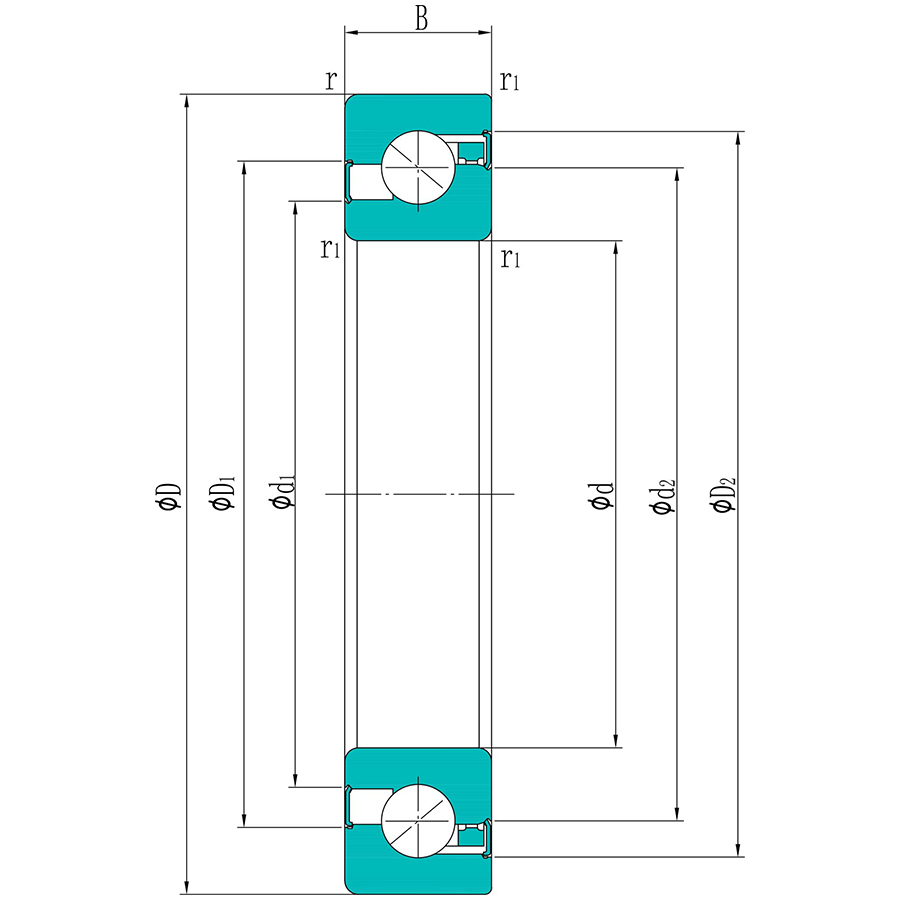

Shoulder dimensions (d1): 34.3mm
Shoulder dimensions (d2): 40.5mm
Shoulder dimensions (D1): 46.5mm
Shoulder dimensions (D2): 52.9mm
Limiting Speeds (Grease): 4500rpm
Limiting Speeds (Oil): 6000rpm
Type: Sealed
25 TAC  62B DDG
