7203 BE-2RZP

Outer Diameter (D): 40mm

Inner Diameter (d): 17mm

Width (B): 12mm

Basic Dynamic Load Rating (C): 10.4kN

Basic Static Load Rating(Co): 5.5kN

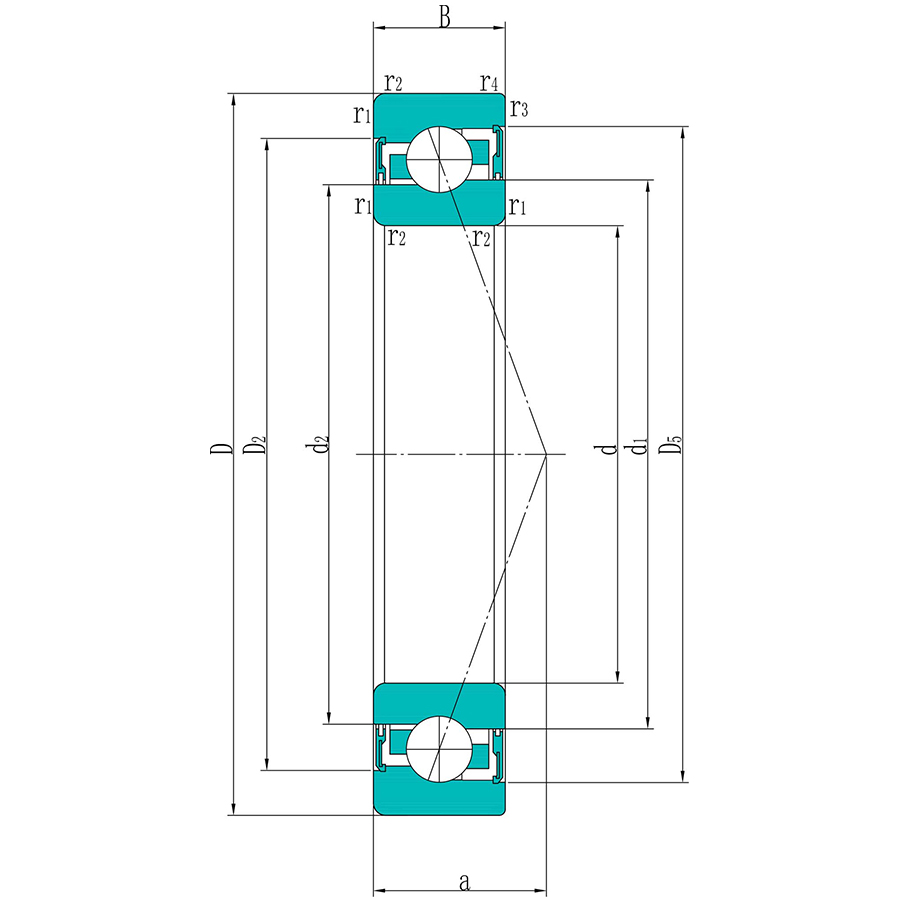

Product Specifications

Outer Diameter (D): 40mm
Inner Diameter (d): 17mm
Width (B): 12mm
Basic Dynamic Load Rating (C): 10.4kN
Basic Static Load Rating(Co): 5.5kN
Limiting Speed: 22000r/min
Reference speed: 17000r/min
Fatigue load limit(Pu): 0.236kN
Shoulder diameter of inner ring (d1) : 26.2mm
Shoulder diameter of inner ring (d2) : 21.6mm
Shoulder diameter of outer ring(D1): 34mm
Chamfer dimension(r1,2 min): 0.6mm
Chamfer dimension(r3,4 min): 0.6mm
Distance side face to pressure point(a): 18mm
Diameter of shaft abutment(da min): 21.2mm
Abutment diameter housing(Da max): 35.8mm
Diameter of housing abutment(Db max): 35.8mm
Radius of fillet(rb max): 0.6mm
Mass(M): 0.063kg
