7204 BE-2RZP

Outer Diameter (D): 47mm

Inner Diameter (d): 20mm

Width (B): 14mm

Basic Dynamic Load Rating (C): 13.3kN

Basic Static Load Rating(Co): 7.65kN

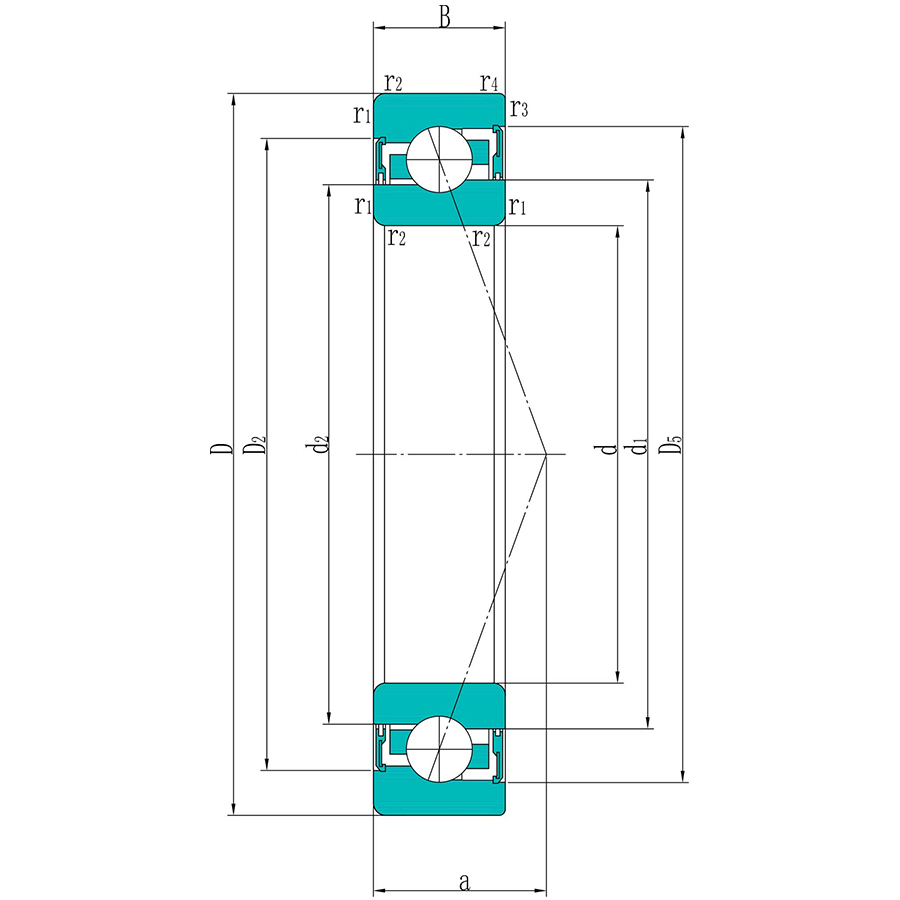

Product Specifications

Outer Diameter (D): 47mm
Inner Diameter (d): 20mm
Width (B): 14mm
Basic Dynamic Load Rating (C): 13.3kN
Basic Static Load Rating(Co): 7.65kN
Limiting Speed: 19000r/min
Reference speed: 14000r/min
Fatigue load limit(Pu): 0.325kN
Shoulder diameter of inner ring (d1) : 30.8mm
Shoulder diameter of inner ring (d2) : 25.8mm
Shoulder diameter of outer ring(D1): 37.7mm
Chamfer dimension(r1,2 min): 1mm
Chamfer dimension(r3,4 min): 0.6mm
Distance side face to pressure point(a): 21mm
Diameter of shaft abutment(da min): 25.6mm
Abutment diameter housing(Da max): 41.4mm
Diameter of housing abutment(Db max): 42.8mm
Radius of fillet(rb max): 0.6mm
Mass(M): 0.15kg
7204 BE-2RZP
