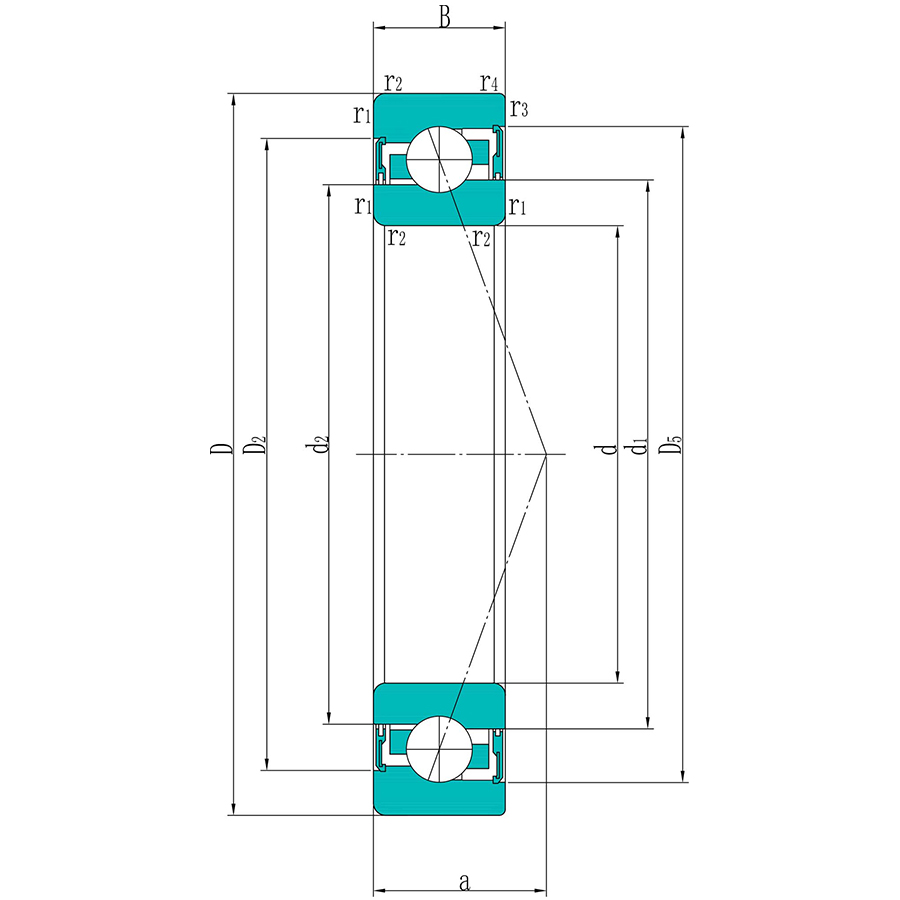

7210 BE-2RZP
Outer diameter (D): 90 mm
Inner diameter (d): 50 mm
Width (B): 20 mm
Basic dynamic load rating : 37.7 KN
Basic static load rating: 28.5 KN
Product Description
Outer diameter (D):
90 mm
Inner diameter (d):
50 mm
Width (B):
20 mm
Basic dynamic load rating :
37.7 KN
Basic static load rating:
28.5 KN
Limiting speed :
9000 r/min
Reference speed :
7000 r/min
Fatigue load limit (Pu):
1.22 KN
Shoulder diameter (d1):
65.7 mm
Shoulder diameter (d2):
57.6 mm
Shoulder diameter (D1):
76.8 mm
Chamfer dimension (r1,2):
1.1 mm
Chamfer dimension (r3,4):
0.6 mm
Distance side face to pressure point (a):
39 mm
Diameter of shaft abutment (da MIN):
57 mm
Housing abutment diameter (Da):
83 mm
Diameter of housing abutment (Db MAX):
85 mm
Chamfer dimension (rb):
0.6 mm
Mass:
0.55 kg
