6004 ZNR
Outer Diameter (D): 42mm
Inner Diameter (d): 20mm
Width (B): 12mm
Basic Dynamic Load Rating (C): 9.95kN
Basic Static Load Rating (Co): 5kN

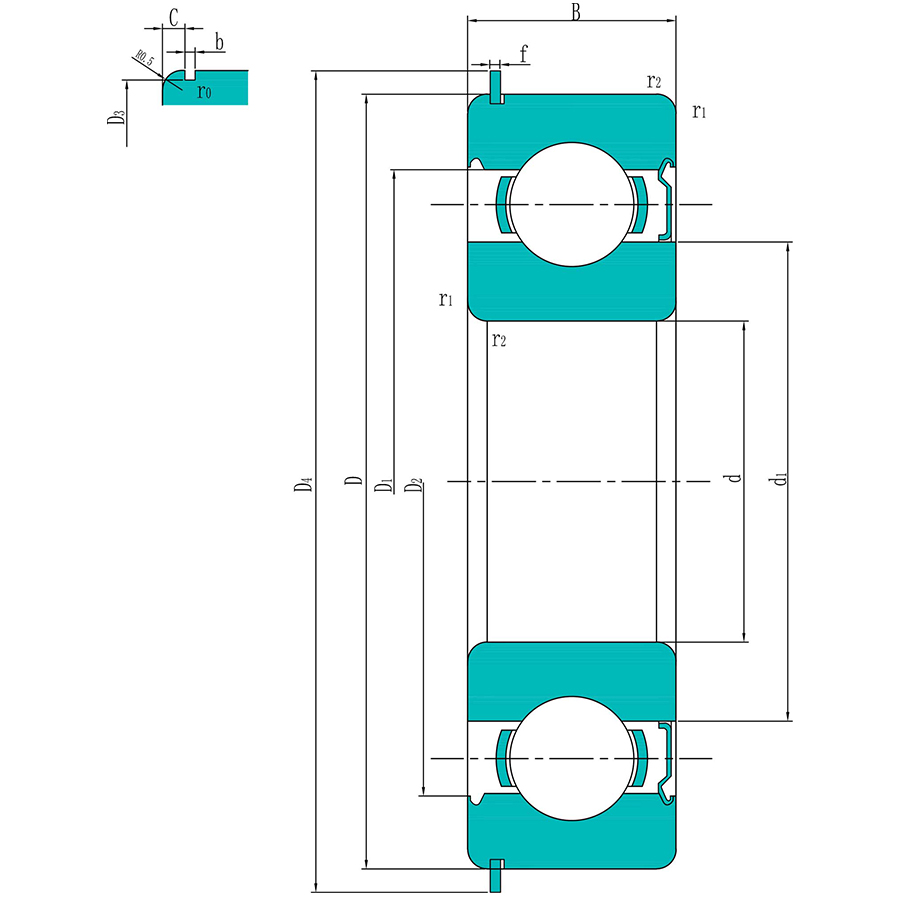

Product Specifications
Outer Diameter (D):
42mm
Inner Diameter (d):
20mm
Width (B):
12mm
Basic Dynamic Load Rating (C):
9.95kN
Basic Static Load Rating (Co):
5kN
Fatigue load limit(Pu):
0.212kN
Reference speed:
38000r/min
Limiting Speed:
19000r/min
Shoulder Diameter(d1) :
27.2mm
Shoulder diameter(D1):
-
Recess Diameter(D2) :
37.2mm
Diameter of Snap Ring Groove (D3) :
39.75mm
Outside Diameter of Snap Ring (D4) :
46.3mm
Width of Snap Ring Groove (b):
1.35mm
Width of Snap Ring (f):
1.12mm
Chamfer dimension (r1,2 min):
0.6mm
Mass (M):
0.069kg
