6005 ZNR
Outer diameter (D): 47 mm
Inner diameter (d): 25 mm
Width (B): 12 mm
Basic dynamic load rating : 11.9 KN
Basic static load rating: 6.55 KN
Product Description

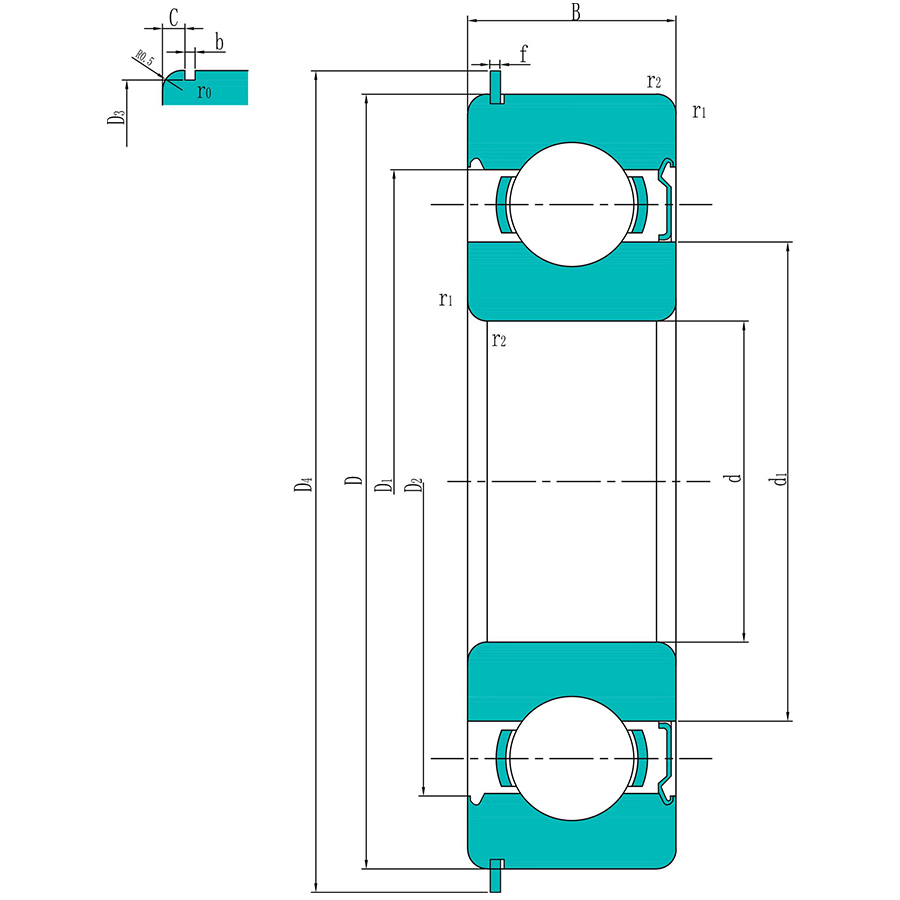

Outer diameter (D):
47 mm
Inner diameter (d):
25 mm
Width (B):
12 mm
Basic dynamic load rating :
11.9 KN
Basic static load rating:
6.55 KN
Fatigue load limit (Pu):
0.275 KN
Reference speed :
32000 r/min
Limiting speed :
16000 r/min
Shoulder diameter (d1):
32 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
42.2 mm
Diameter of snap ring groove (D3):
44.6 mm
Outside diameter of snap ring (D4):
52.7 mm
Width of snap ring groove (b):
1.35 mm
Width of snap ring (f):
1.12 mm
Chamfer dimension (r1,2):
0.6 mm
Mass:
0.08 kg
