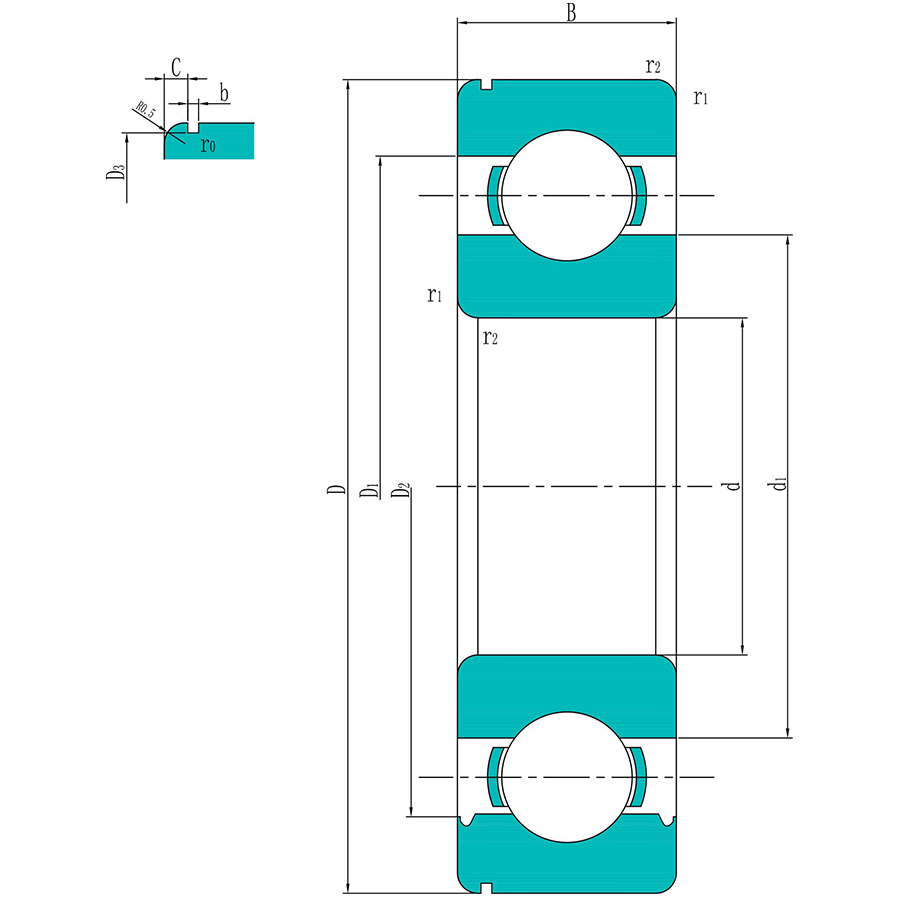

6201 N
Outer Diameter (D): 32mm
Inner Diameter (d): 12mm
Width (B): 10mm
Basic Dynamic Load Rating (C): 7.28kN
Basic Static Load Rating (Co): 3.1kN
Product Specifications
Outer Diameter (D):
32mm
Inner Diameter (d):
12mm
Width (B):
10mm
Basic Dynamic Load Rating (C):
7.28kN
Basic Static Load Rating (Co):
3.1kN
Fatigue load limit(Pu):
0.132kN
Reference speed:
50000r/min
Limiting Speed:
32000r/min
Shoulder Diameter(d1) :
18.4mm
Shoulder diameter(D1):
-
Recess Diameter(D2) :
27.4mm
Diameter of Snap Ring Groove (D3) :
30.15mm
Outside Diameter of Snap Ring (D4) :
36.7mm
Width of Snap Ring Groove (b):
1.35mm
Width of Snap Ring (f):
1.12mm
Chamfer dimension (r1,2 min):
0.6mm
Mass (M):
0.037kg
