6201 ZNR

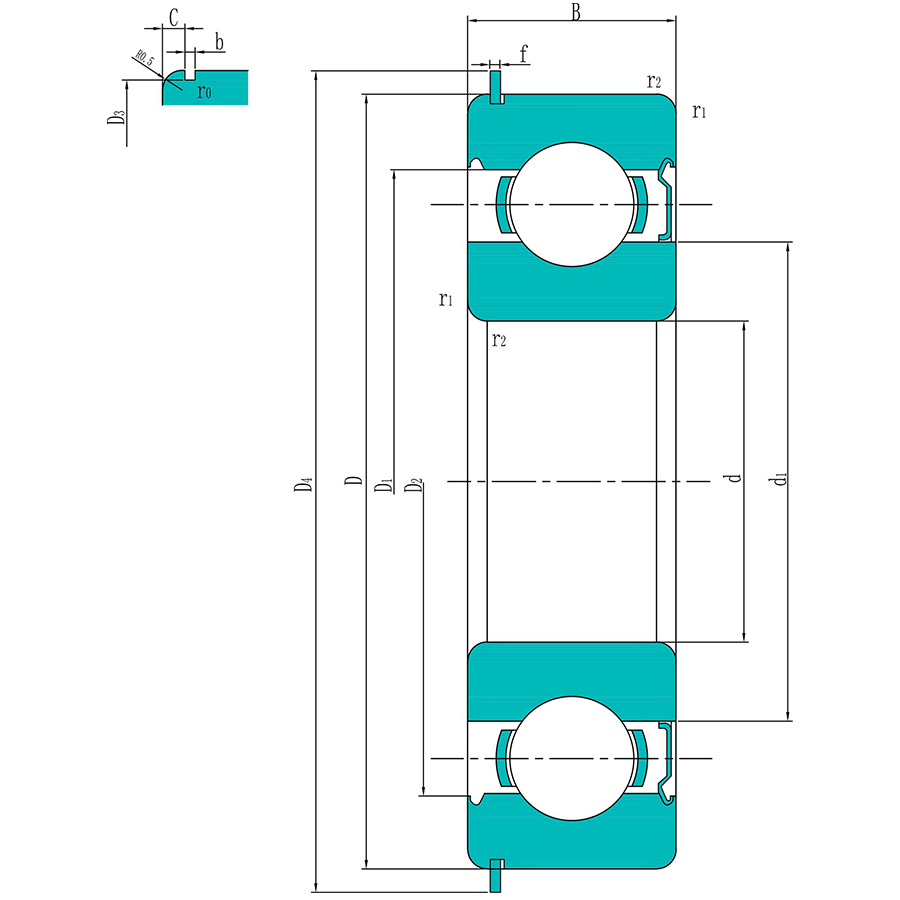

Outer diameter (D): 32 mm
Inner diameter (d): 12 mm
Width (B): 10 mm
Basic dynamic load rating : 7.28 KN
Basic static load rating: 3.1 KN
Product Description
Outer diameter (D):
32 mm
Inner diameter (d):
12 mm
Width (B):
10 mm
Basic dynamic load rating :
7.28 KN
Basic static load rating:
3.1 KN
Fatigue load limit (Pu):
0.132 KN
Reference speed :
50000 r/min
Limiting speed :
26000 r/min
Shoulder diameter (d1):
18.4 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
27.4 mm
Diameter of snap ring groove (D3):
30.15 mm
Outside diameter of snap ring (D4):
36.7 mm
Width of snap ring groove (b):
1.35 mm
Width of snap ring (f):
1.12 mm
Chamfer dimension (r1,2):
0.6 mm
Mass:
0.037 kg
