6202 ZNR
Outer diameter (D): 35 mm
Inner diameter (d): 15 mm
Width (B): 11 mm
Basic dynamic load rating : 8.06 KN
Basic static load rating: 3.75 KN
Product Description

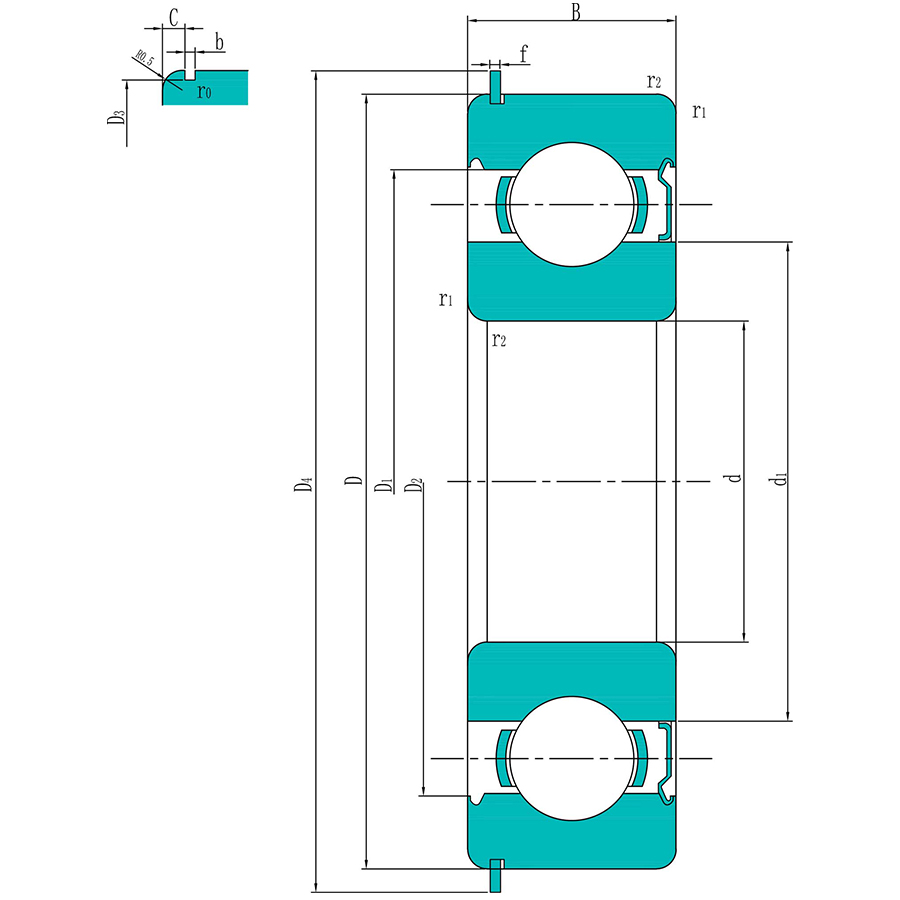

Outer diameter (D):
35 mm
Inner diameter (d):
15 mm
Width (B):
11 mm
Basic dynamic load rating :
8.06 KN
Basic static load rating:
3.75 KN
Fatigue load limit (Pu):
0.16 KN
Reference speed :
43000 r/min
Limiting speed :
22000 r/min
Shoulder diameter (d1):
21.7 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
30.5 mm
Diameter of snap ring groove (D3):
33.17 mm
Outside diameter of snap ring (D4):
39.7 mm
Width of snap ring groove (b):
1.35 mm
Width of snap ring (f):
1.12 mm
Chamfer dimension (r1,2):
0.6 mm
Mass:
0.045 kg
