6204 ZNR
Outer Diameter (D): 47mm
Inner Diameter (d): 20mm
Width (B): 14mm
Basic Dynamic Load Rating (C): 13.5kN
Basic Static Load Rating (Co): 6.55kN
Product Specifications
Outer Diameter (D):
47mm
Inner Diameter (d):
20mm
Width (B):
14mm
Basic Dynamic Load Rating (C):
13.5kN
Basic Static Load Rating (Co):
6.55kN
Fatigue load limit(Pu):
0.28kN
Reference speed:
32000r/min
Limiting Speed:
17000r/min

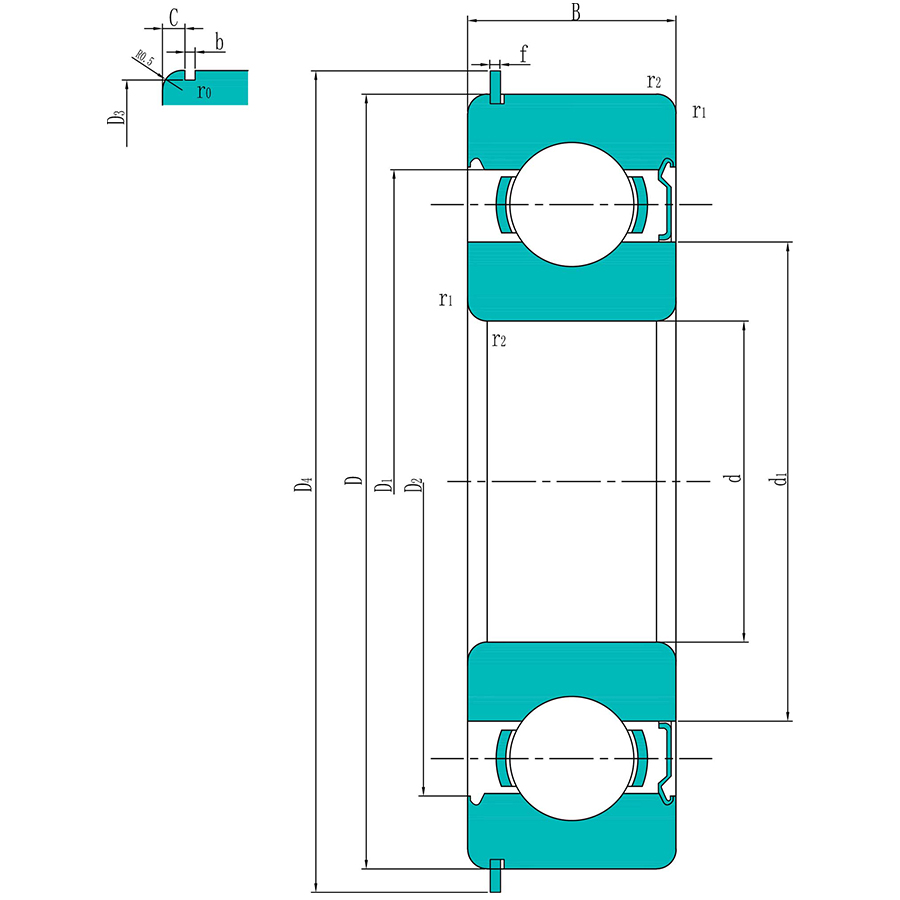

Shoulder Diameter(d1) :
28.8mm
Shoulder diameter(D1):
-
Recess Diameter(D2) :
40.6mm
Diameter of Snap Ring Groove (D3) :
44.6mm
Outside Diameter of Snap Ring (D4) :
52.7mm
Width of Snap Ring Groove (b):
1.35mm
Width of Snap Ring (f):
1.12mm
Chamfer dimension (r1,2 min):
1mm
Mass (M):
0.11kg
