6206 2ZNR
Outer diameter (D): 62 mm
Inner diameter (d): 30 mm
Width (B): 16 mm
Basic dynamic load rating : 20.3 KN
Basic static load rating: 11.2 KN
Product Description

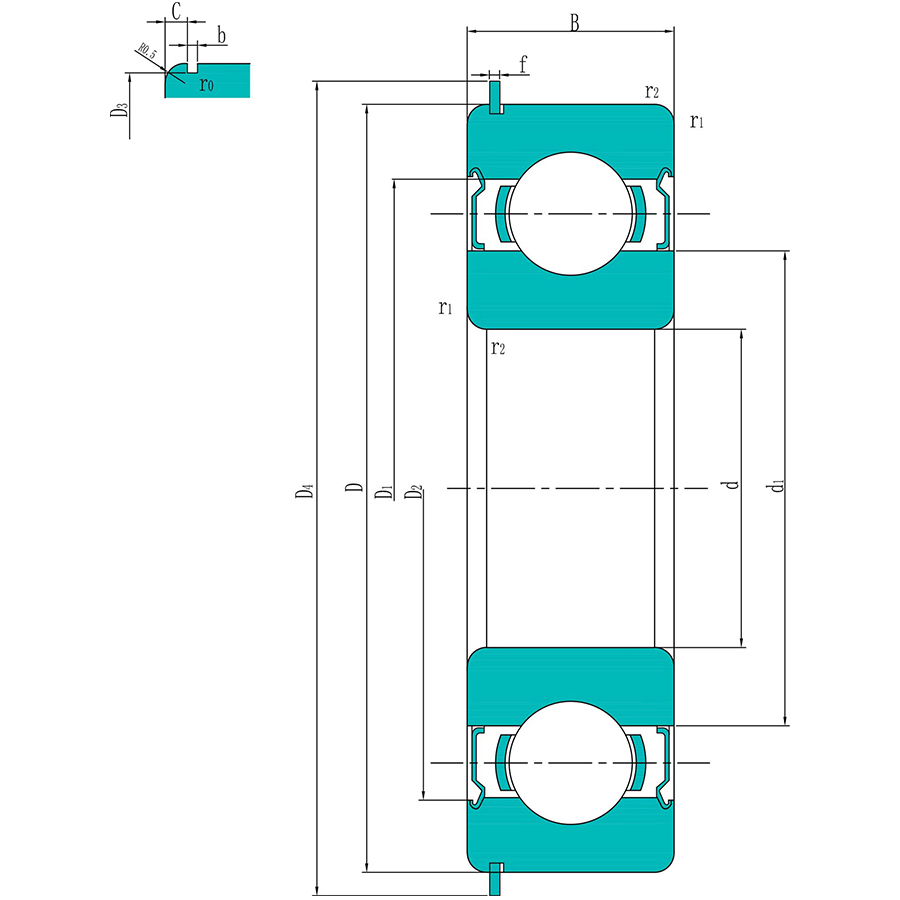

Outer diameter (D):
62 mm
Inner diameter (d):
30 mm
Width (B):
16 mm
Basic dynamic load rating :
20.3 KN
Basic static load rating:
11.2 KN
Fatigue load limit (Pu):
0.475 KN
Reference speed :
24000 r/min
Limiting speed :
12000 r/min
Shoulder diameter (d1):
40.3 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
54.1 mm
Diameter of snap ring groove (D3):
59.61 mm
Outside diameter of snap ring (D4):
67.7 mm
Width of snap ring groove (b):
1.9 mm
Width of snap ring (f):
1.7 mm
Chamfer dimension (r1,2):
1.1 mm
Mass:
0.21 kg
