6207 N
Outer diameter (D): 72 mm
Inner diameter (d): 35 mm
Width (B): 17 mm
Basic dynamic load rating : 27 KN
Basic static load rating: 15.3 KN
Product Description

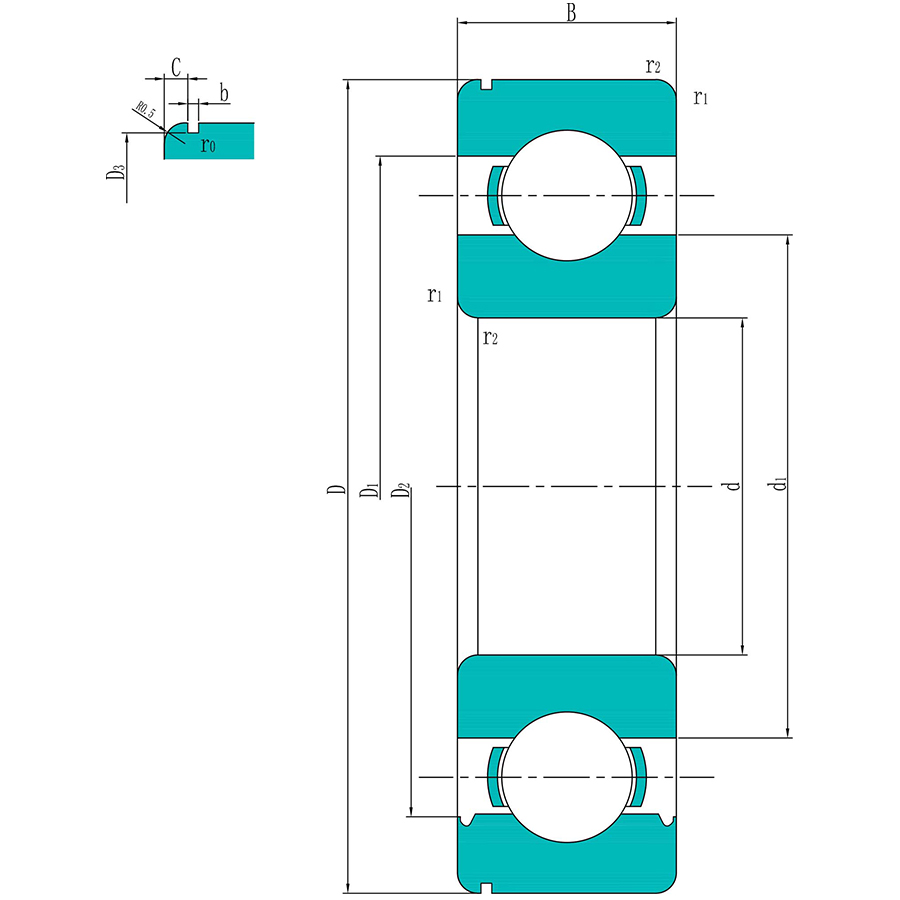

Outer diameter (D):
72 mm
Inner diameter (d):
35 mm
Width (B):
17 mm
Basic dynamic load rating :
27 KN
Basic static load rating:
15.3 KN
Fatigue load limit (Pu):
0.655 KN
Reference speed :
20000 r/min
Limiting speed :
13000 r/min
Shoulder diameter (d1):
46.9 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
62.7 mm
a:
68.81 mm
Outside diameter of snap ring (D4):
78.6 mm
Width of snap ring groove (b):
1.9 mm
Width of snap ring (f):
1.7 mm
Chamfer dimension (r1,2):
1.1 mm
Mass:
0.3 kg
