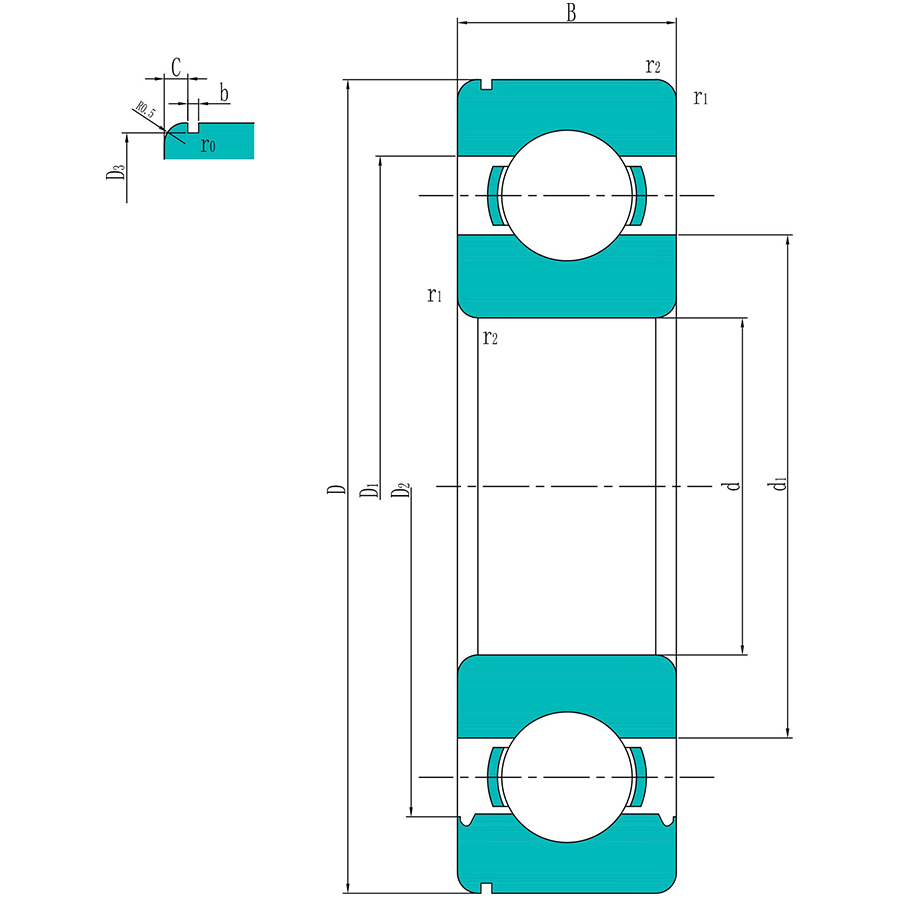

6212 N
Outer diameter (D): 110 mm
Inner diameter (d): 60 mm
Width (B): 22 mm
Basic dynamic load rating : 55.3 KN
Basic static load rating: 36 KN
Product Description
Outer diameter (D):
110 mm
Inner diameter (d):
60 mm
Width (B):
22 mm
Basic dynamic load rating :
55.3 KN
Basic static load rating:
36 KN
Fatigue load limit (Pu):
1.53 KN
Reference speed :
13000 r/min
Limiting speed :
8000 r/min
Shoulder diameter (d1):
75.5 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
98 mm
Diameter of snap ring groove (D3):
106.81 mm
Outside diameter of snap ring (D4):
116.6 mm
Width of snap ring groove (b):
2.7 mm
Width of snap ring (f):
2.46 mm
Chamfer dimension (r1,2):
1.5 mm
Mass:
0.8 kg
