6213 2ZNR
Outer diameter (D): 120 mm
Inner diameter (d): 65 mm
Width (B): 23 mm
Basic dynamic load rating : 58.5 KN
Basic static load rating: 40.5 KN
Product Description

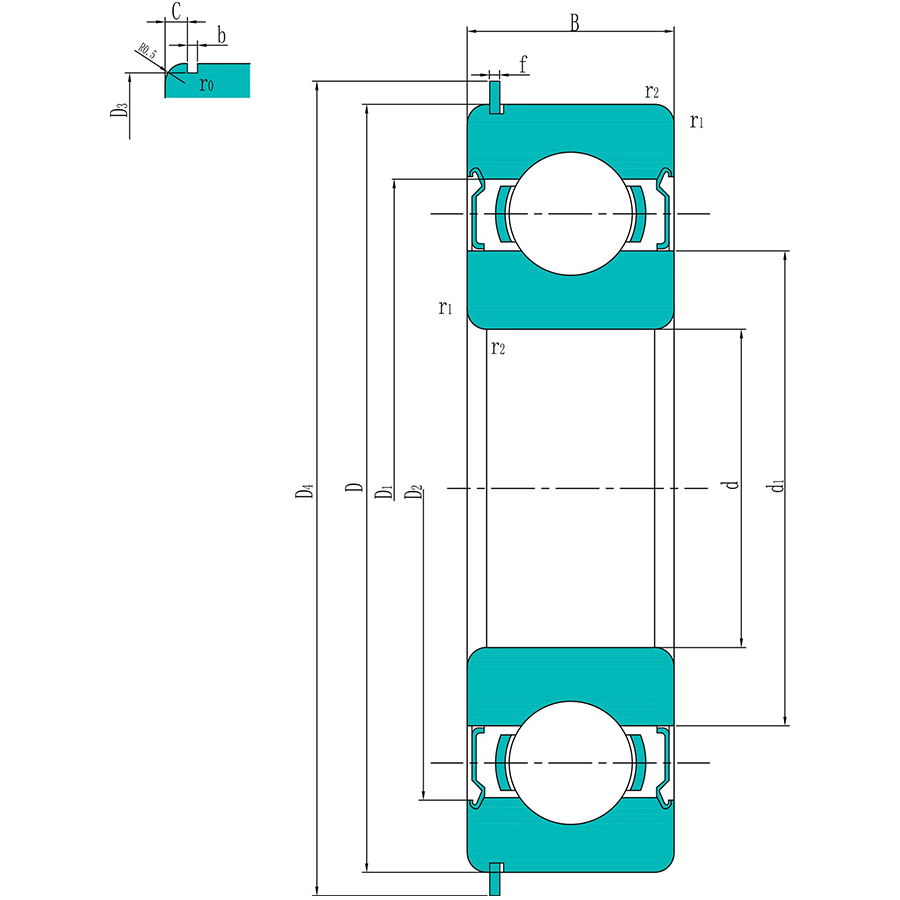

Outer diameter (D):
120 mm
Inner diameter (d):
65 mm
Width (B):
23 mm
Basic dynamic load rating :
58.5 KN
Basic static load rating:
40.5 KN
Fatigue load limit (Pu):
1.73 KN
Reference speed :
12000 r/min
Limiting speed :
6000 r/min
Shoulder diameter (d1):
83.3 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
106 mm
Diameter of snap ring groove (D3):
115.21 mm
Outside diameter of snap ring (D4):
129.7 mm
Width of snap ring groove (b):
3.1 mm
Width of snap ring (f):
2.82 mm
Chamfer dimension (r1,2):
1.5 mm
Mass:
1.1 kg
