6214 2ZNR
Outer diameter (D): 125 mm
Inner diameter (d): 70 mm
Width (B): 24 mm
Basic dynamic load rating : 63.7 KN
Basic static load rating: 45 KN
Product Description

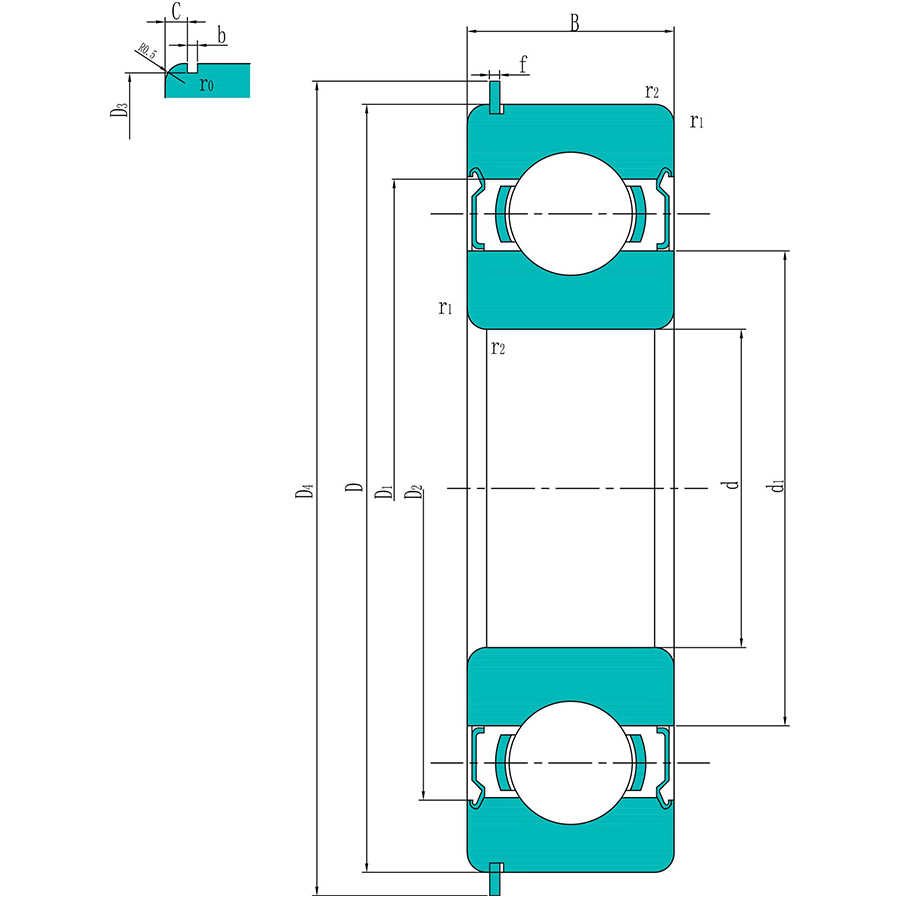

Outer diameter (D):
125 mm
Inner diameter (d):
70 mm
Width (B):
24 mm
Basic dynamic load rating :
63.7 KN
Basic static load rating:
45 KN
Fatigue load limit (Pu):
1.9 KN
Reference speed :
11000 r/min
Limiting speed :
5600 r/min
Shoulder diameter (d1):
87 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
130 mm
Diameter of snap ring groove (D3):
145.25 mm
Outside diameter of snap ring (D4):
159.7 mm
Width of snap ring groove (b):
3.1 mm
Width of snap ring (f):
2.82 mm
Chamfer dimension (r1,2):
1.5 mm
Mass:
1.15 kg
