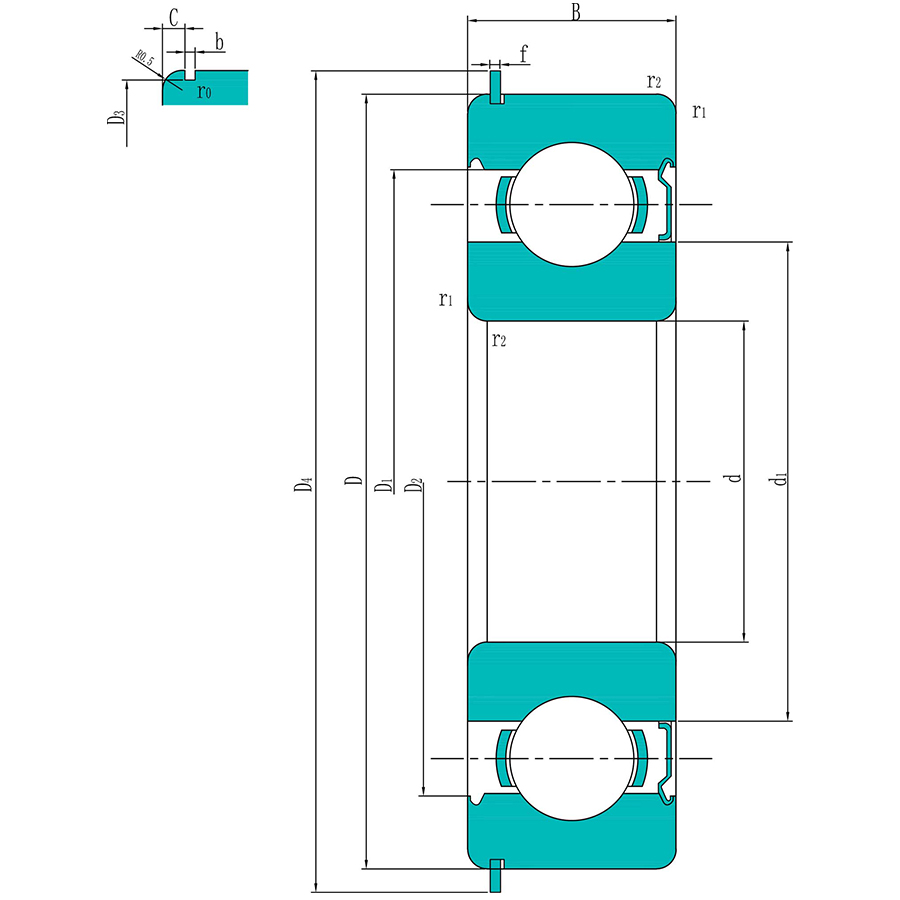

6314 ZNR
Outer diameter (D): 150 mm
Inner diameter (d): 70 mm
Width (B): 35 mm
Basic dynamic load rating : 111 KN
Basic static load rating: 68 KN
Product Description
Outer diameter (D):
150 mm
Inner diameter (d):
70 mm
Width (B):
35 mm
Basic dynamic load rating :
111 KN
Basic static load rating:
68 KN
Fatigue load limit (Pu):
2.75 KN
Reference speed :
9500 r/min
Limiting speed :
5000 r/min
Shoulder diameter (d1):
94.9 mm
Shoulder diameter (D1):
-
Recess diameter (D2):
130 mm
Diameter of snap ring groove (D3):
145.25 mm
Outside diameter of snap ring (D4):
159.7 mm
Width of snap ring groove (b):
3.1 mm
Width of snap ring (f):
2.82 mm
Chamfer dimension (r1,2):
2.1 mm
Mass:
2.65 kg
