217 NR
Outer diameter (D): 150 mm
Inner diameter (d): 85 mm
Width (B): 28 mm
Basic dynamic load rating : 96.8 KN
Basic static load rating: 100 KN

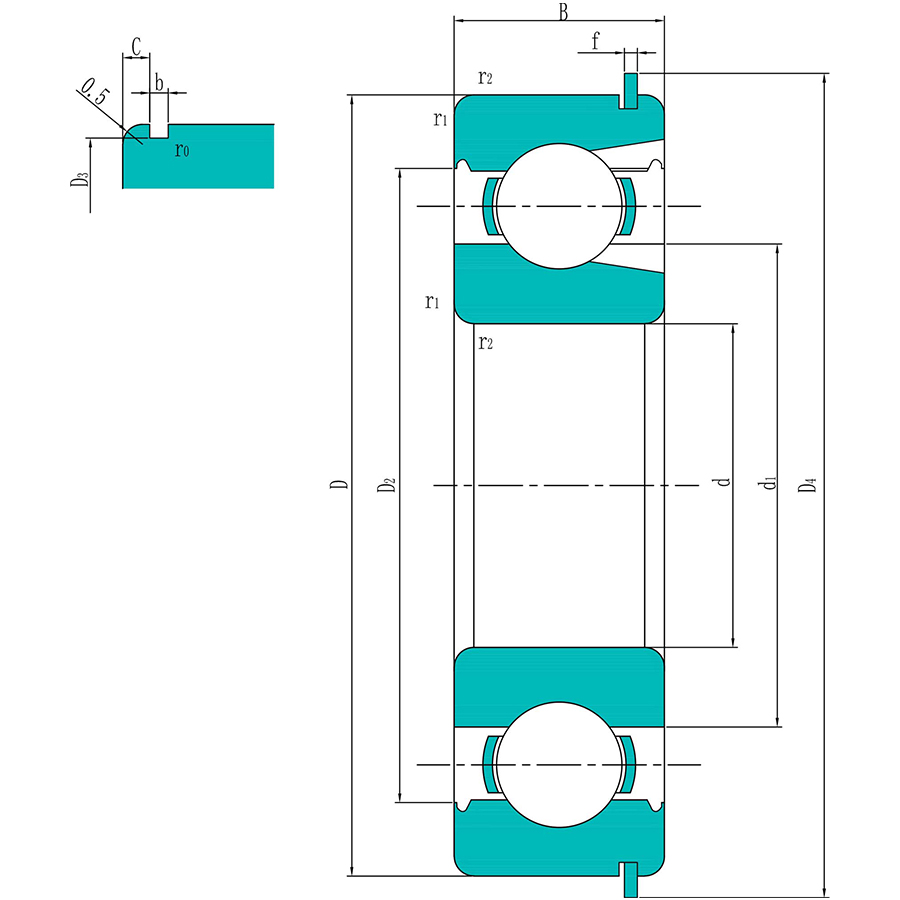

Product Description
Outer diameter (D):
150 mm
Inner diameter (d):
85 mm
Width (B):
28 mm
Basic dynamic load rating :
96.8 KN
Basic static load rating:
100 KN
Fatigue load limit (Pu):
3.9 KN
Reference speed :
7500 r/min
Limiting speed :
4800 r/min
Shoulder diameter (d1):
104 mm
Recess diameter (D2):
134.3 mm
Diameter of snap ring groove (D3):
145.24 mm
Outside diameter of snap ring (D4):
159.7 mm
Width of snap ring groove (b):
3.1 mm
Width of snap ring (f):
2.82 mm
Chamfer dimension (r1,2):
2 mm
Mass:
1.95 kg
