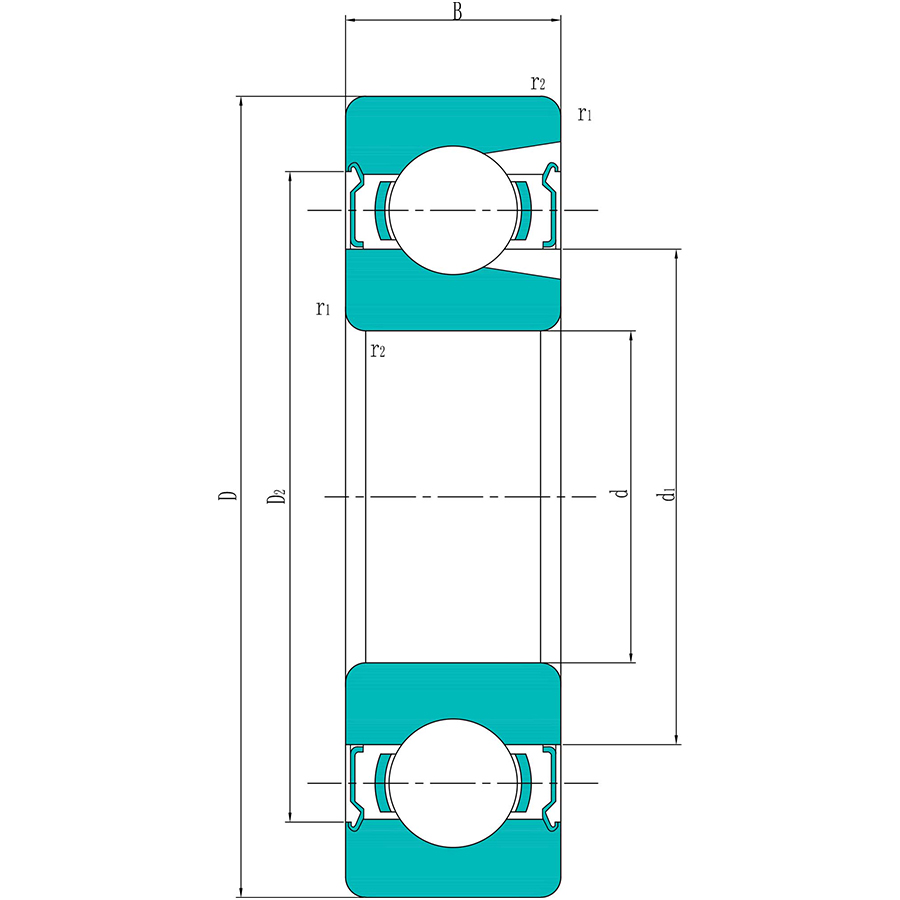

305 2Z
Outer Diameter (D): 62mm
Inner Diameter (d): 25mm
Width (B): 17mm
Basic Dynamic Load Rating (C): 22.9kN
Basic Static Load Rating (Co): 15.6kN
Product Specifications
Outer Diameter (D):
62mm
Inner Diameter (d):
25mm
Width (B):
17mm
Basic Dynamic Load Rating (C):
22.9kN
Basic Static Load Rating (Co):
15.6kN
Fatigue Load Limit(Pu):
0.67kN
Reference Speed (r/min):
20000r/min
Limiting Speed(r/min):
10400r/min
Shoulder Diameter(d1) :
36.6mm
Recess Diameter(D2) :
52.7mm
Diameter of Snap Ring Groove (D3) :
59.61mm
Outside Diameter of Snap Ring (D4) :
67.7mm
Width of Snap Ring Groove (b):
1.9mm
Width of Snap Ring (f):
1.7mm
Chamfer dimension (r1,2 min):
1.1mm
Mass (M):
0.24kg
