308 2Z

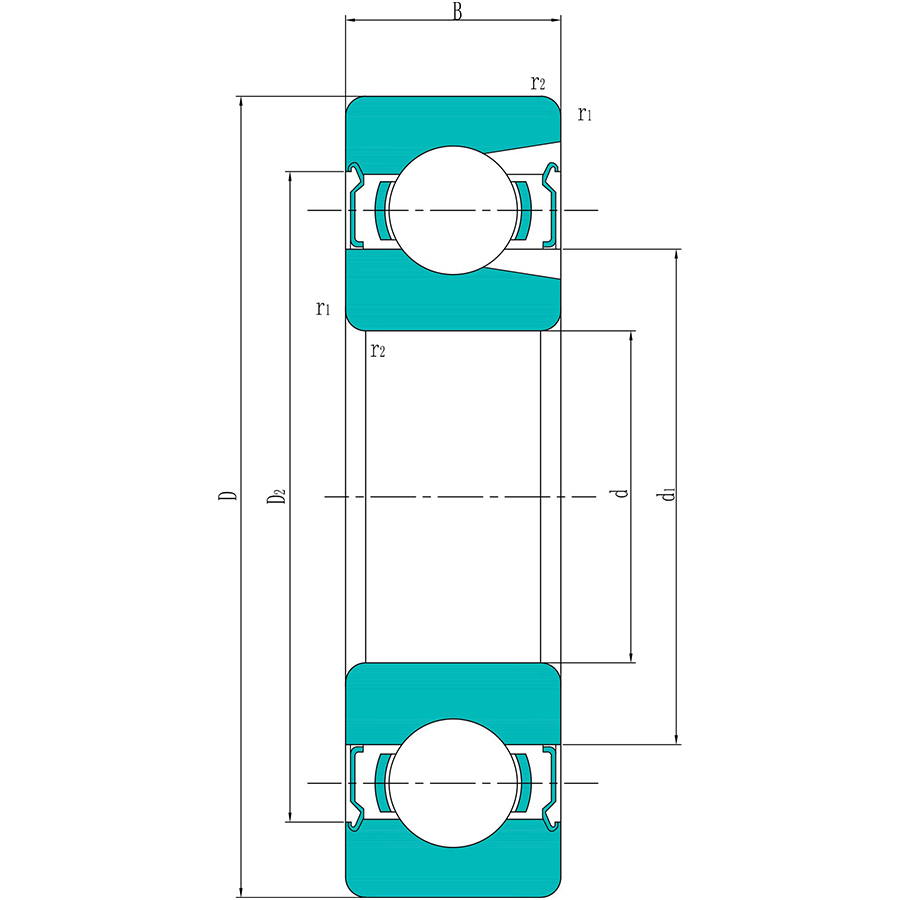

Outer diameter (D): 90 mm
Inner diameter (d): 40 mm
Width (B): 23 mm
Basic dynamic load rating : 45.7 KN
Basic static load rating: 36 KN
Product Description
Outer diameter (D):
90 mm
Inner diameter (d):
40 mm
Width (B):
23 mm
Basic dynamic load rating :
45.7 KN
Basic static load rating:
36 KN
Fatigue load limit (Pu):
1.53 KN
Reference speed :
14000 r/min
Limiting speed :
6800 r/min
Shoulder diameter (d1):
56.1 mm
Recess diameter (D2):
77.7 mm
Diameter of snap ring groove (D3):
86.79 mm
Outside diameter of snap ring (D4):
96.5 mm
Width of snap ring groove (b):
2.7 mm
Width of snap ring (f):
2.46 mm
Chamfer dimension (r1,2):
1.5 mm
Mass:
0.64 kg
