604
Effective center location (a): 12 mm
Inner diameter (d): 4 mm
Width (B): 4 mm
Basic dynamic load rating : 0.54 KN
Basic static load rating: 0.176 KN

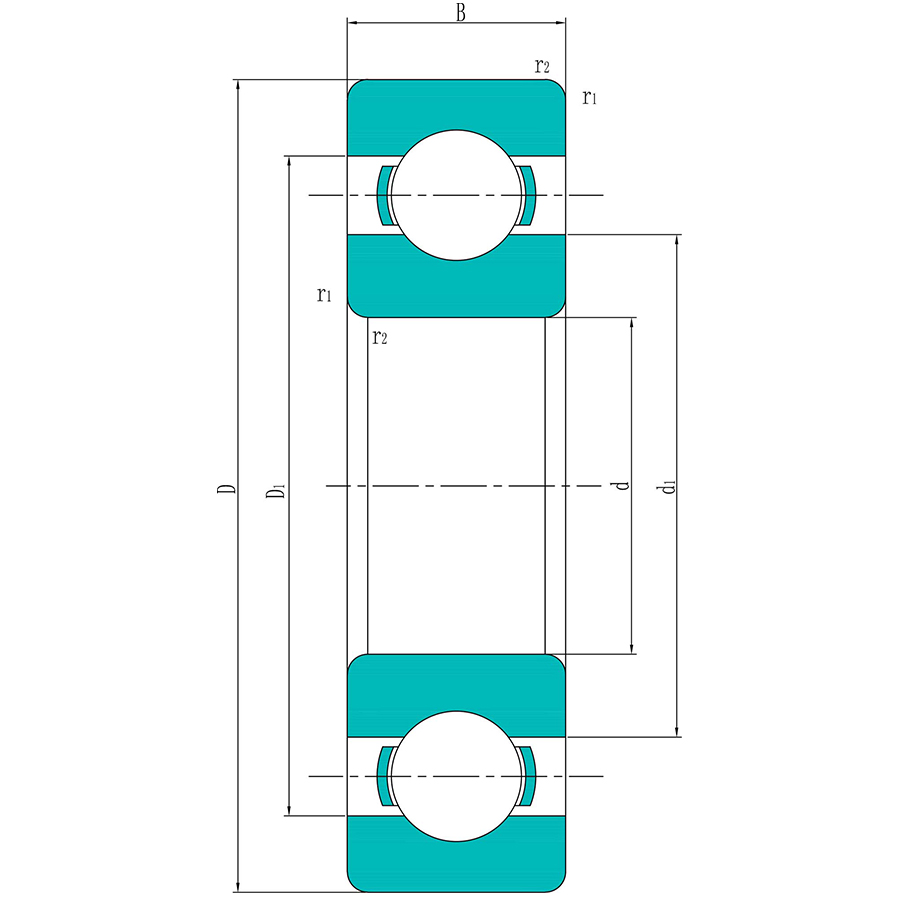

Product Description
Effective center location (a):
12 mm
Inner diameter (d):
4 mm
Width (B):
4 mm
Basic dynamic load rating :
0.54 KN
Basic static load rating:
0.176 KN
Fatigue load limit (Pu):
0.008 KN
Reference speed :
130000 r/min
Limiting speed :
80000 r/min
Shoulder diameter (d1):
-
Shoulder diameter (d2):
6.7 mm
Shoulder diameter (D1):
-
Shoulder diameter (D2):
13 mm
Chamfer dimension (r1,2):
0.3 mm
Mass:
2 g
