6206

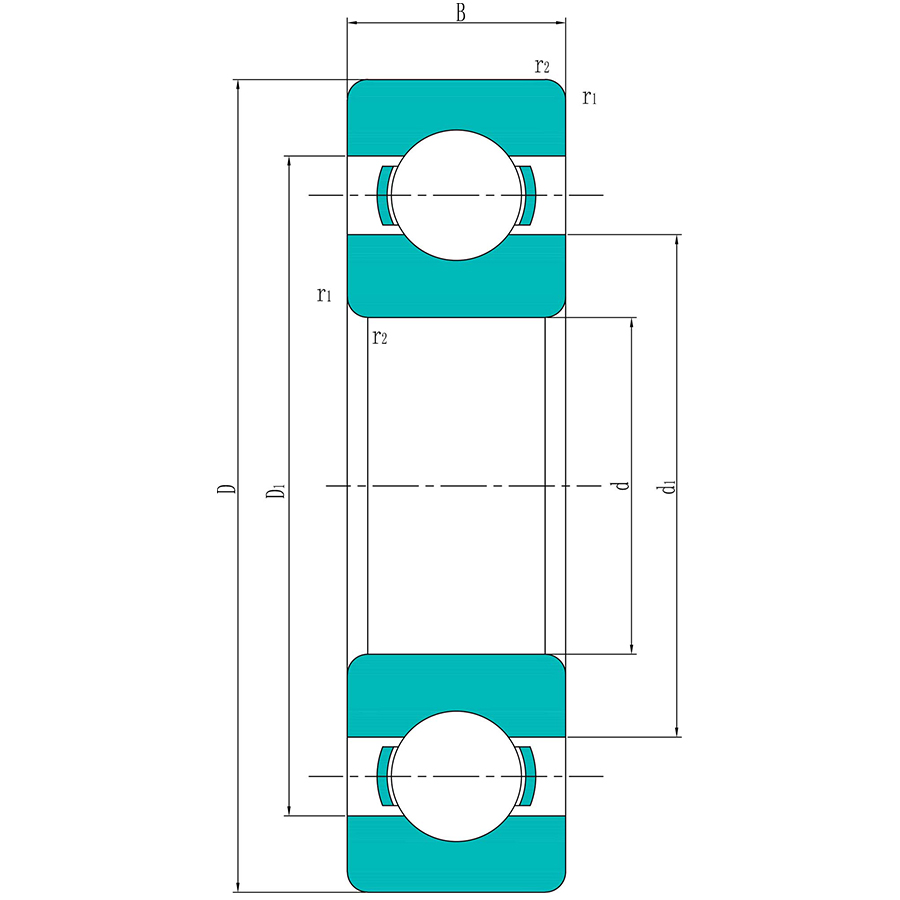

Outer diameter (D): 62 mm
Inner diameter (d): 30 mm
Width (B): 16 mm
Basic dynamic load rating : 16.5 KN
Basic static load rating: 11.2 KN
Product Description
Outer diameter (D):
62 mm
Inner diameter (d):
30 mm
Width (B):
16 mm
Basic dynamic load rating :
16.5 KN
Basic static load rating:
11.2 KN
Fatigue load limit (Pu):
0.48 KN
Reference speed :
26000 r/min
Limiting speed :
16000 r/min
Shoulder diameter (d1):
40.7 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Shoulder diameter (D2):
55.2 mm
Chamfer dimension (r1,2):
1 mm
Mass:
186 g
