627

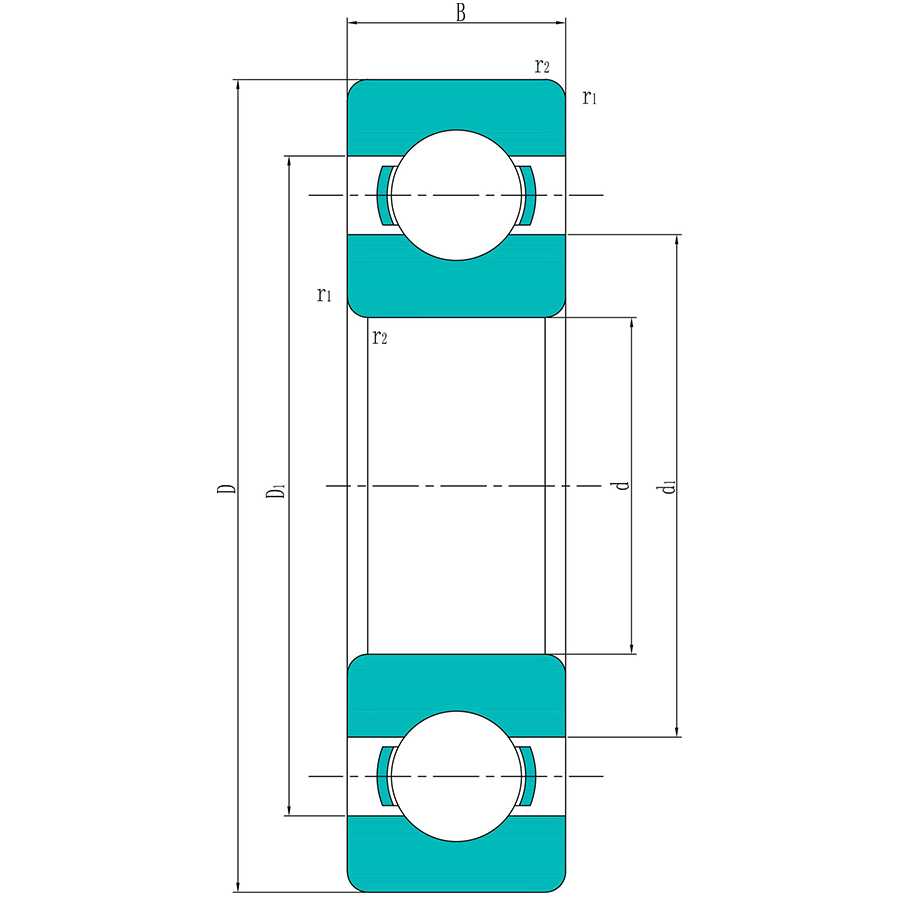

Outer diameter (D): 22 mm
Inner diameter (d): 7 mm
Width (B): 7 mm
Basic dynamic load rating : 1.99 KN
Basic static load rating: 0.78 KN
Product Description
Outer diameter (D):
22 mm
Inner diameter (d):
7 mm
Width (B):
7 mm
Basic dynamic load rating :
1.99 KN
Basic static load rating:
0.78 KN
Fatigue load limit (Pu):
0.034 KN
Reference speed :
75000 r/min
Limiting speed :
48000 r/min
Shoulder diameter (d1):
-
Shoulder diameter (d2):
10.5 mm
Shoulder diameter (D1):
-
Shoulder diameter (D2):
19.1 mm
Chamfer dimension (r1,2):
0.3 mm
Mass:
11.5 g
