6017 Z

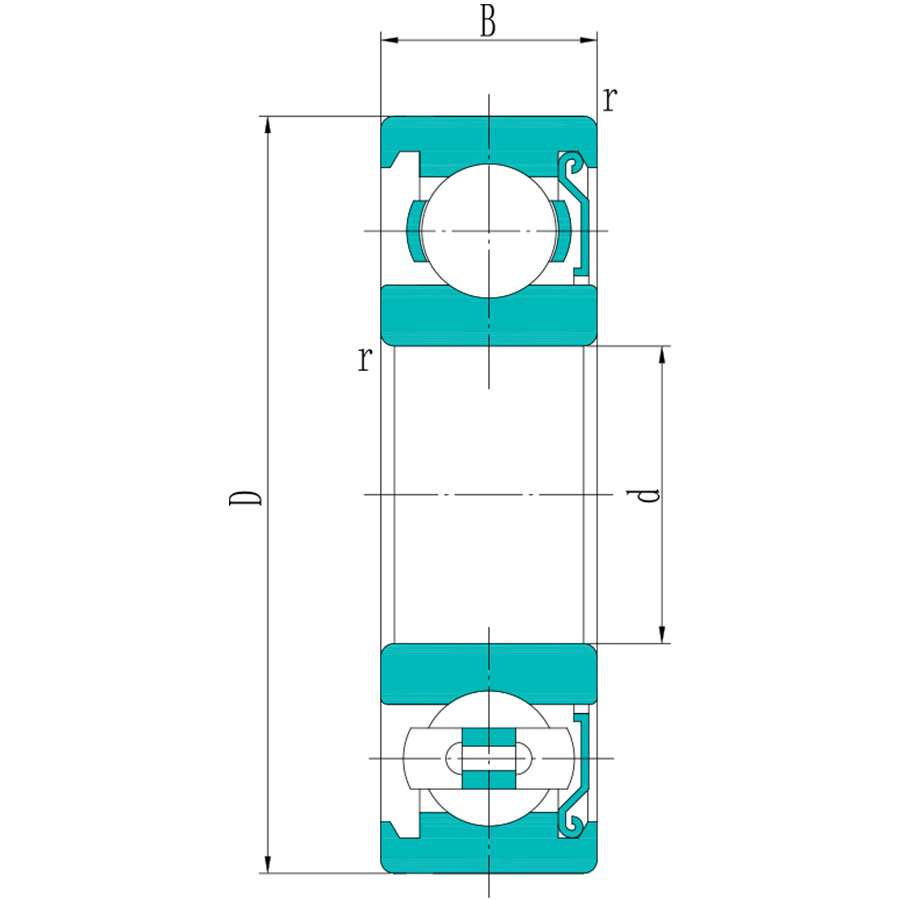

Outer diameter (D): 130 mm
Inner diameter (d): 85 mm
Width (B): 22 mm
Basic dynamic load rating : 52 KN
Basic static load rating: 43 KN
Product Description
Outer diameter (D):
130 mm
Inner diameter (d):
85 mm
Width (B):
22 mm
Basic dynamic load rating :
52 KN
Basic static load rating:
43 KN
Fatigue load limit (Pu):
1.76 KN
Reference speed :
11000 r/min
Limiting speed :
5300 r/min
Shoulder diameter (d1):
99.4 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Recess diameter (D2):
120 mm
Chamfer dimension (r1,2):
1.1 mm
Mass:
0.94 kg
