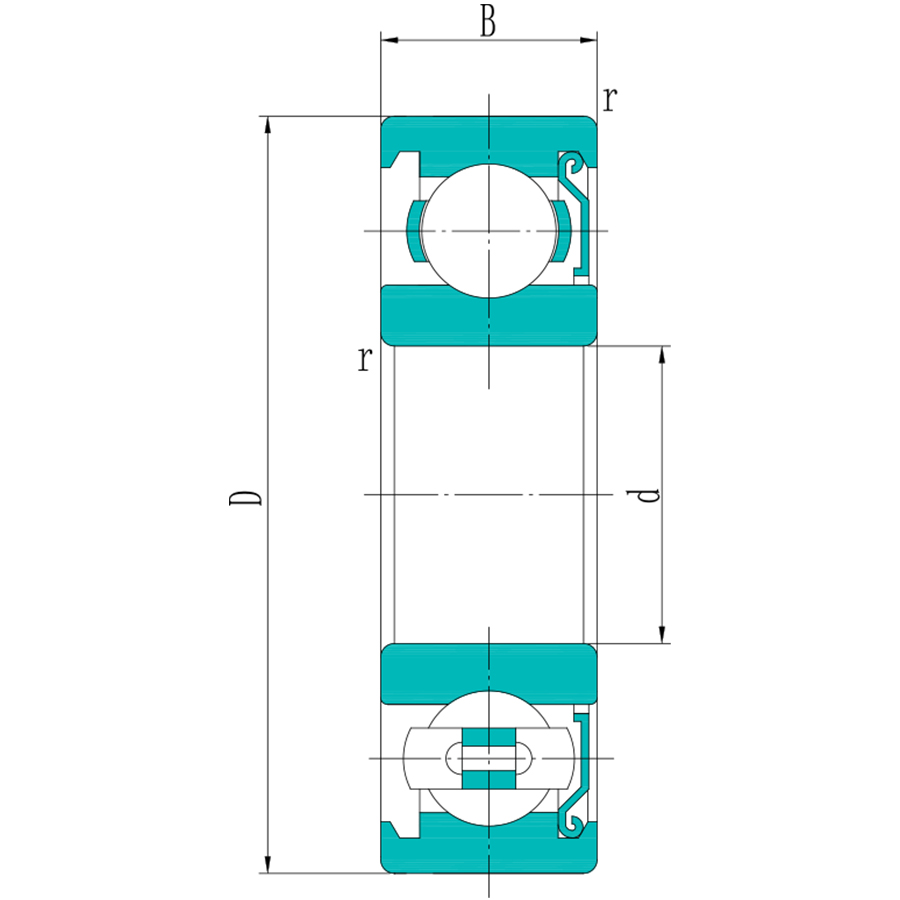

604 Z
Outer Diameter (D): 12mm
Inner Diameter (d): 4mm
Width (B): 4mm
Basic Dynamic Load Rating (C): 0.806kN
Basic Static Load Rating(Co): 0.28kN
Product Specifications
Outer Diameter (D):
12mm
Inner Diameter (d):
4mm
Width (B):
4mm
Basic Dynamic Load Rating (C):
0.806kN
Basic Static Load Rating(Co):
0.28kN
Fatigue load limit(Pu):
0.012kN
Reference Speed (r/min):
120000r/min
Limiting Speed(r/min):
60000r/min
Shoulder diameter of inner ring (d1) :
6.1mm
Shoulder diameter of inner ring (d2) :
-
Shoulder diameter(D1):
-
Recess diameter(D2):
9.8mm
Chamfer dimension(r1,2 min):
0.2mm
Mass(M):
0.0021kg
