61936 MA

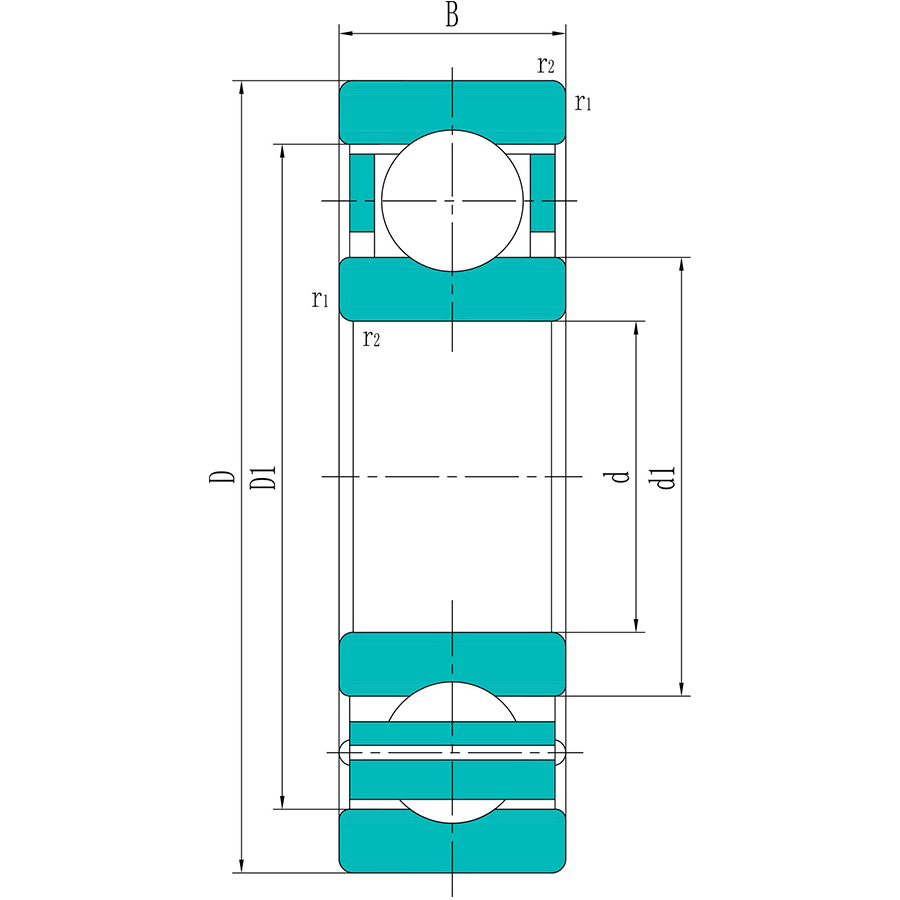

Outer diameter (D): 250 mm
Inner diameter (d): 180 mm
Width (B): 33 mm
Basic dynamic load rating : 119 KN
Basic static load rating: 134 KN
Product Description
Outer diameter (D):
250 mm
Inner diameter (d):
180 mm
Width (B):
33 mm
Basic dynamic load rating :
119 KN
Basic static load rating:
134 KN
Fatigue load limit (Pu):
3.9 KN
Reference speed :
5300 r/min
Limiting speed :
4300 r/min
Shoulder diameter (d1):
202 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
229 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
2 mm
Mass:
5 kg
