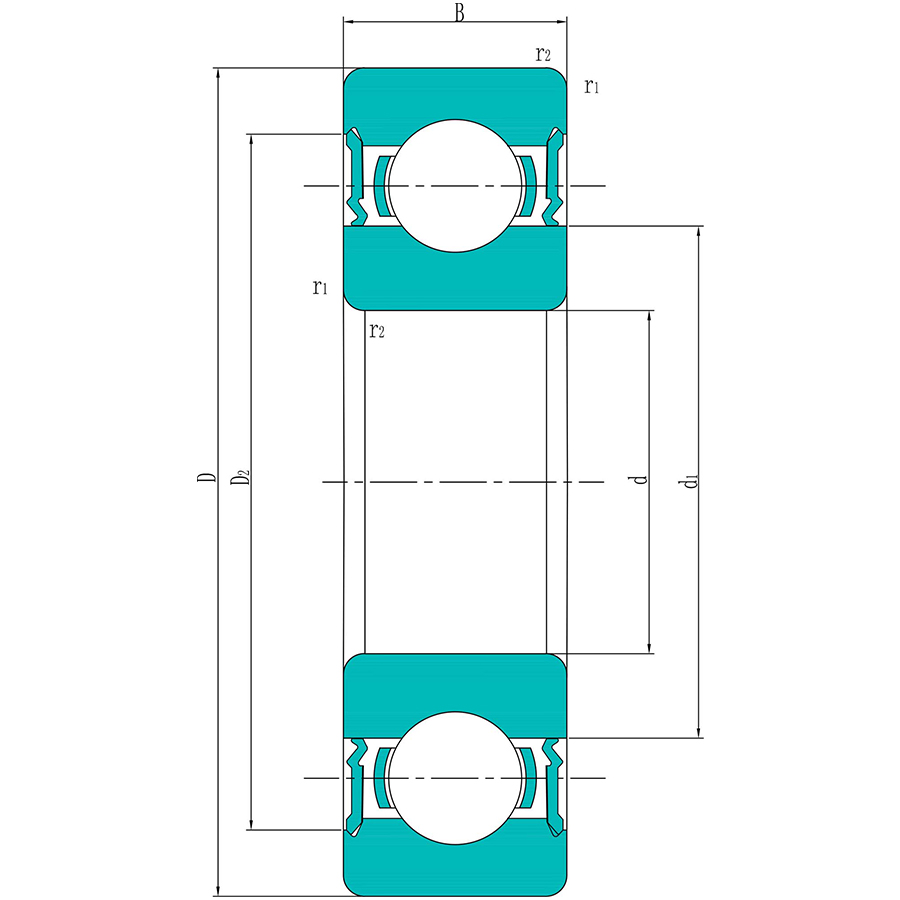

62/22 2RS1
Outer diameter (D): 50 mm
Inner diameter (d): 22 mm
Width (B): 14 mm
Basic dynamic load rating : 14 KN
Basic static load rating: 7.65 KN
Product Description
Outer diameter (D):
50 mm
Inner diameter (d):
22 mm
Width (B):
14 mm
Basic dynamic load rating :
14 KN
Basic static load rating:
7.65 KN
Fatigue load limit (Pu):
0.325 KN
Reference speed :
-
Limiting speed :
9000 r/min
Shoulder diameter (d1):
32.2 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Recess diameter (D2):
44 mm
Chamfer dimension (r1,2):
1 mm
Mass:
0.12 kg
