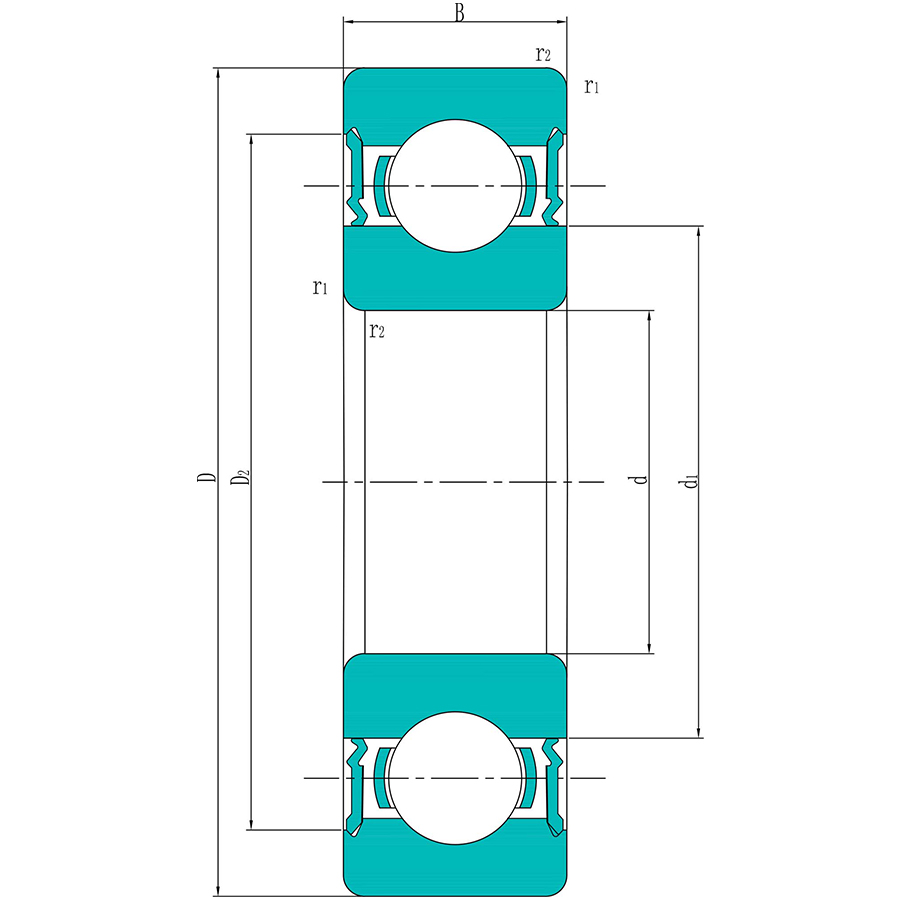

62201 2RS1
Outer diameter (D): 32 mm
Inner diameter (d): 12 mm
Width (B): 14 mm
Basic dynamic load rating : 6.89 KN
Basic static load rating: 3.1 KN
Product Description
Outer diameter (D):
32 mm
Inner diameter (d):
12 mm
Width (B):
14 mm
Basic dynamic load rating :
6.89 KN
Basic static load rating:
3.1 KN
Fatigue load limit (Pu):
0.132 KN
Reference speed :
-
Limiting speed :
15000 r/min
Shoulder diameter (d1):
18.5 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Abutment and fillet dimensions (Da):
27.4 mm
Chamfer dimension (r1,2):
0.6 mm
Mass:
0.045 kg
