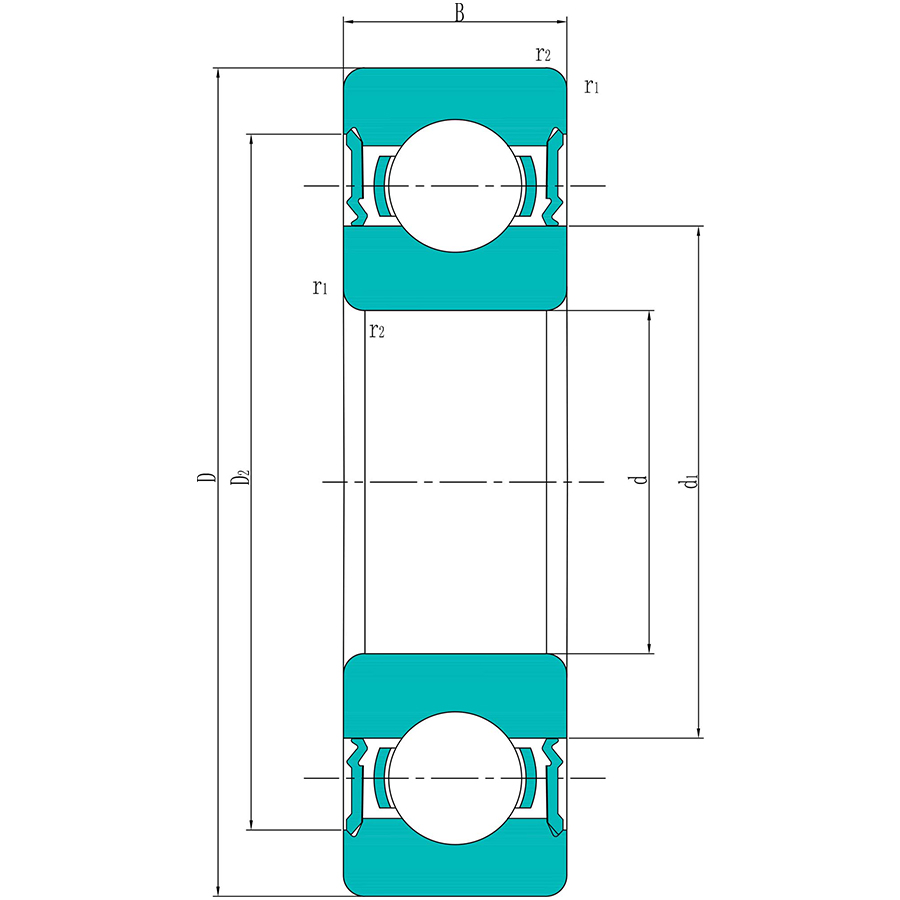

62205 2RS1
Outer diameter (D): 52 mm
Inner diameter (d): 25 mm
Width (B): 18 mm
Basic dynamic load rating : 14 KN
Basic static load rating: 7.8 KN
Product Description
Outer diameter (D):
52 mm
Inner diameter (d):
25 mm
Width (B):
18 mm
Basic dynamic load rating :
14 KN
Basic static load rating:
7.8 KN
Fatigue load limit (Pu):
0.035 KN
Reference speed :
-
Limiting speed :
8500 r/min
Shoulder diameter (d1):
34.3 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Recess diameter (D2):
46.3 mm
Chamfer dimension (r1,2):
1 mm
Mass:
0.13 kg
