6256 M

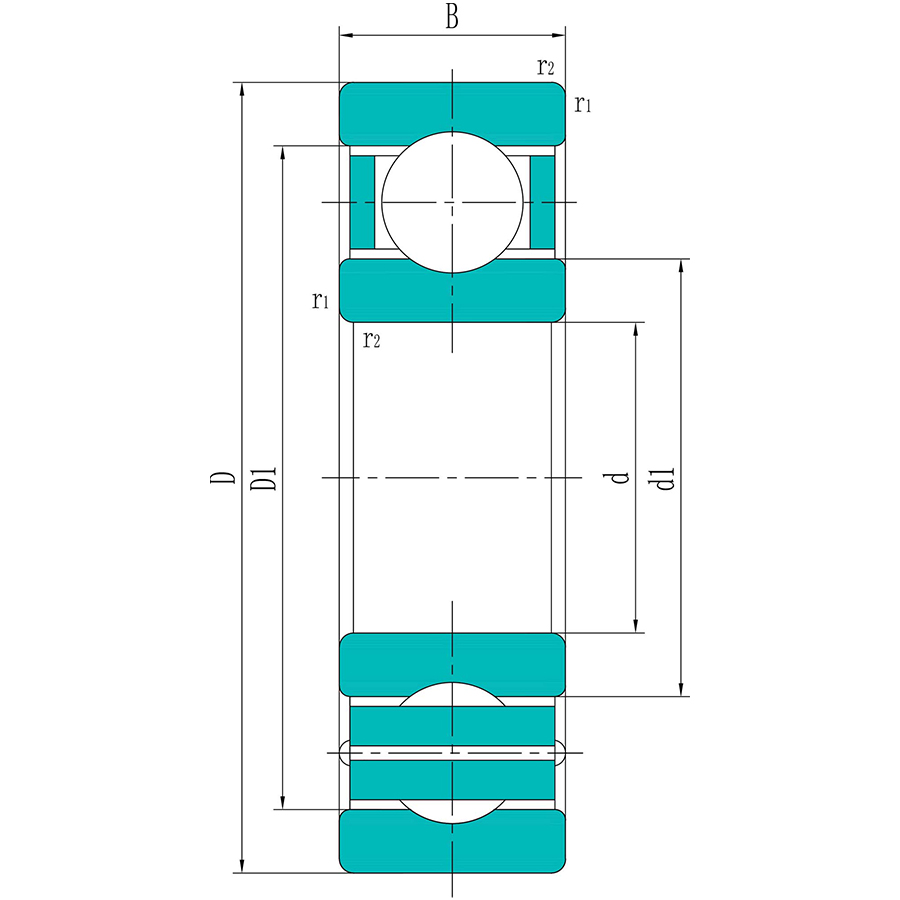

Outer diameter (D): 500 mm
Inner diameter (d): 280 mm
Width (B): 80 mm
Basic dynamic load rating : 423 KN
Basic static load rating: 600 KN
Product Description
Outer diameter (D):
500 mm
Inner diameter (d):
280 mm
Width (B):
80 mm
Basic dynamic load rating :
423 KN
Basic static load rating:
600 KN
Fatigue load limit (Pu):
12.9 KN
Reference speed :
2600 r/min
Limiting speed :
2200 r/min
Shoulder diameter (d1):
355 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
425 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
5 mm
Mass:
72 kg
