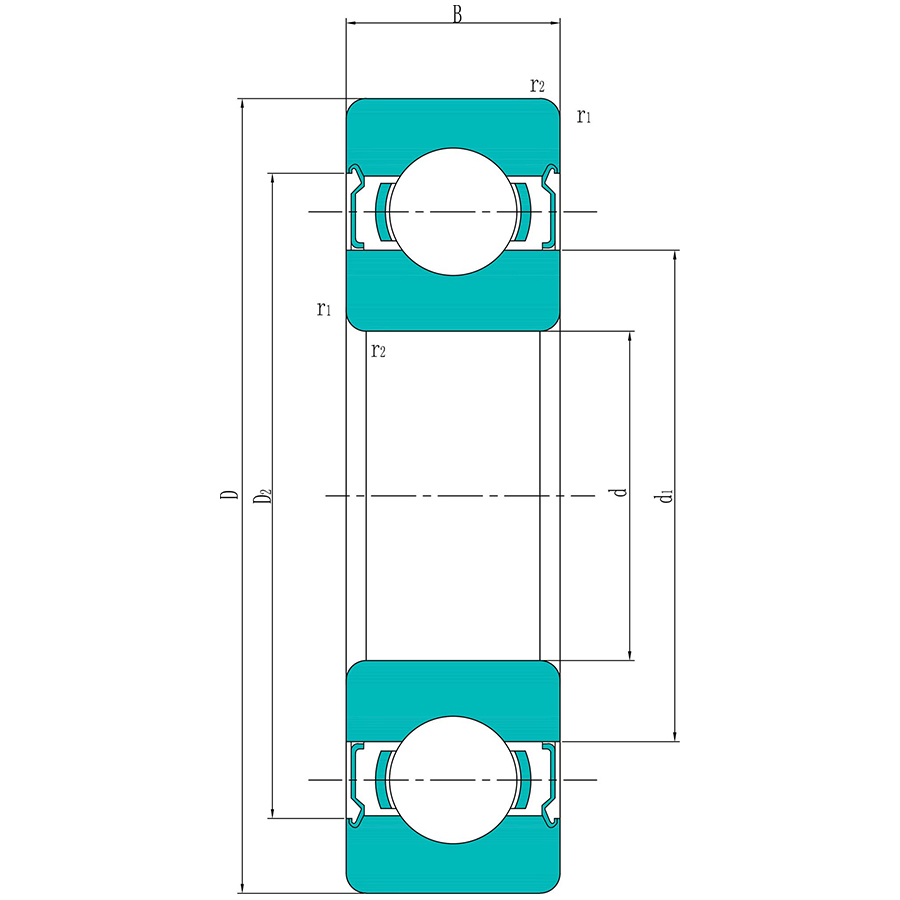

6311 2Z
Outer diameter (D): 120 mm
Inner diameter (d): 55 mm
Width (B): 29 mm
Basic dynamic load rating : 74.1 KN
Basic static load rating: 45 KN
Product Description
Outer diameter (D):
120 mm
Inner diameter (d):
55 mm
Width (B):
29 mm
Basic dynamic load rating :
74.1 KN
Basic static load rating:
45 KN
Fatigue load limit (Pu):
1.9 KN
Reference speed :
12000 r/min
Limiting speed :
6300 r/min
Shoulder diameter (d1):
75.3 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
-
Recess diameter (D2):
104 mm
Chamfer dimension (r1,2):
2 mm
Mass:
1.4 kg
