JA040XP0

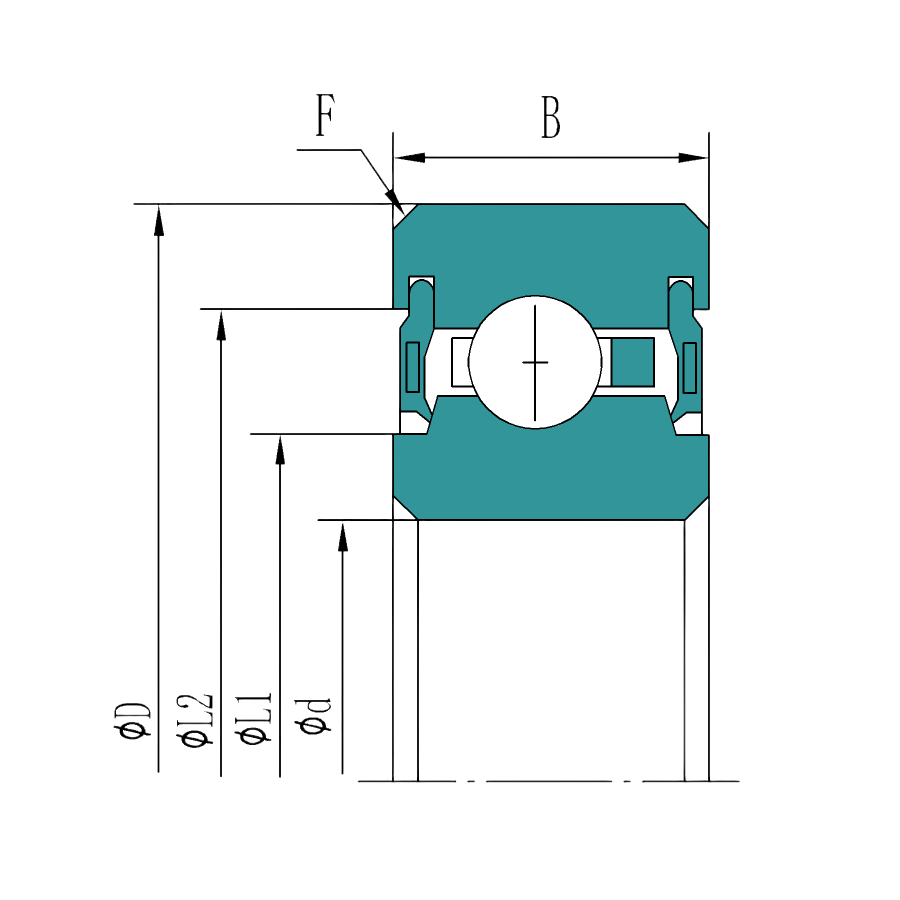

Inner diameter (d): 4.000 inch
Outer diameter (D): 4.500 inch
Width (B): 0.250 inch
Land diameters (L1): 4.148 inch
Land diameters (L2): 4.356 inch
Product Description
Inner diameter (d):
4.000 inch
Outer diameter (D):
4.500 inch
Width (B):
0.250 inch
Land diameters (L1):
4.148 inch
Land diameters (L2):
4.356 inch
Radial static load:
1,290 lbs
Radial dynamic load:
756 lbs
Axial static capacities:
3,220 lbs
Axial dynamic capacities :
1,210 lbs
Static moment:
2,740 in-lbs
Dynamic moment:
1,205 in-lbs
Limiting speed :
620 rpm
Torque Max no load :
20 in-oz
Mass:
0.19 lbs
Type:
X
