JA042XP0

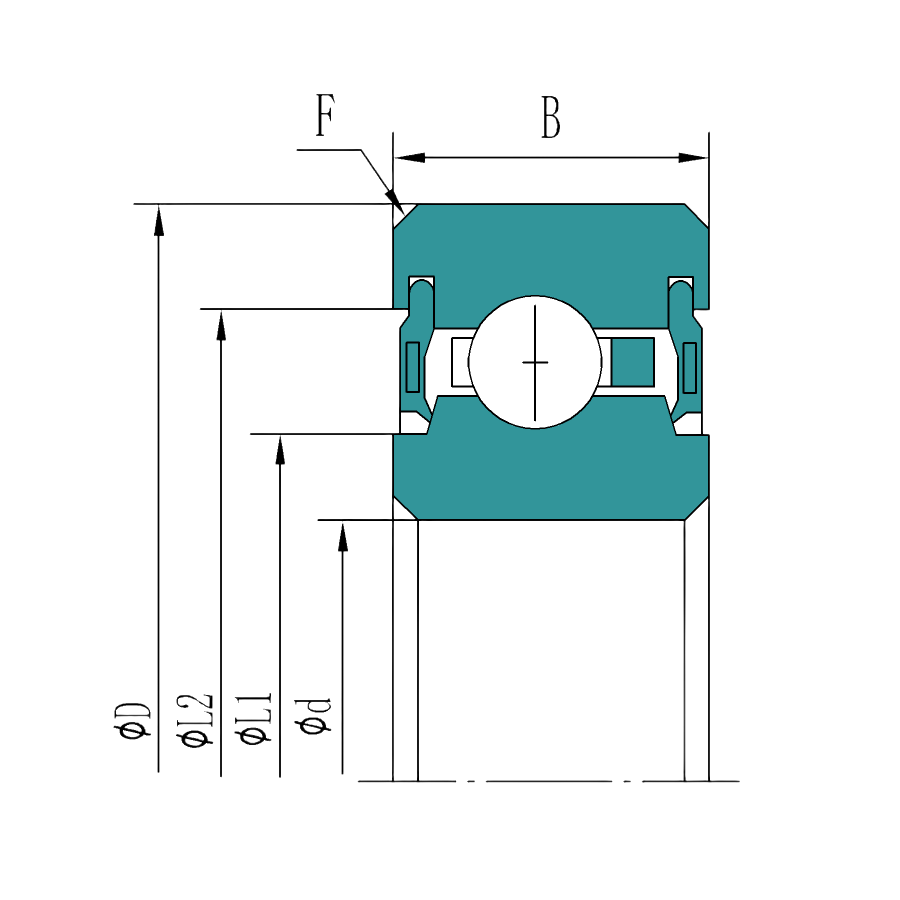

Inner diameter (d): 4.250 inch
Outer diameter (D): 4.750 inch
Width (B): 0.250 inch
Land diameters (L1): 4.398 inch
Land diameters (L2): 4.606 inch
Product Description
Inner diameter (d):
4.250 inch
Outer diameter (D):
4.750 inch
Width (B):
0.250 inch
Land diameters (L1):
4.398 inch
Land diameters (L2):
4.606 inch
Radial static load:
1,370 lbs
Radial dynamic load:
783 lbs
Axial static capacities:
3,410 lbs
Axial dynamic capacities :
1,260 lbs
Static moment:
3,070 in-lbs
Dynamic moment:
1,321 in-lbs
Limiting speed :
580 rpm
Torque Max no load :
24 in-oz
Mass:
0.20 lbs
Type:
X
